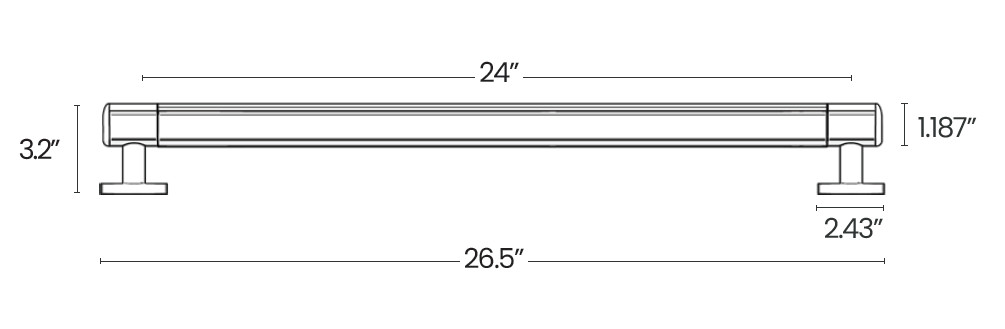

• Center to Center: 24”
• Overall Length: 26.5”
• Insert Length: 22.375”
• Bar Diameter: 1.187”
• Projection from Wall: 3.2”
• Wall Mount Diameter: 2.43”
• Material Spec: 304 SS, 8 Gauge
• Insert Material: Glass
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME
01ST24PC-GLFR FROST
01ST24PC-GLSE SEA
01ST24PC-GLSK SKY
01ST24PC-GLSA SAND
01ST24PC-GLTW TWILIGHT

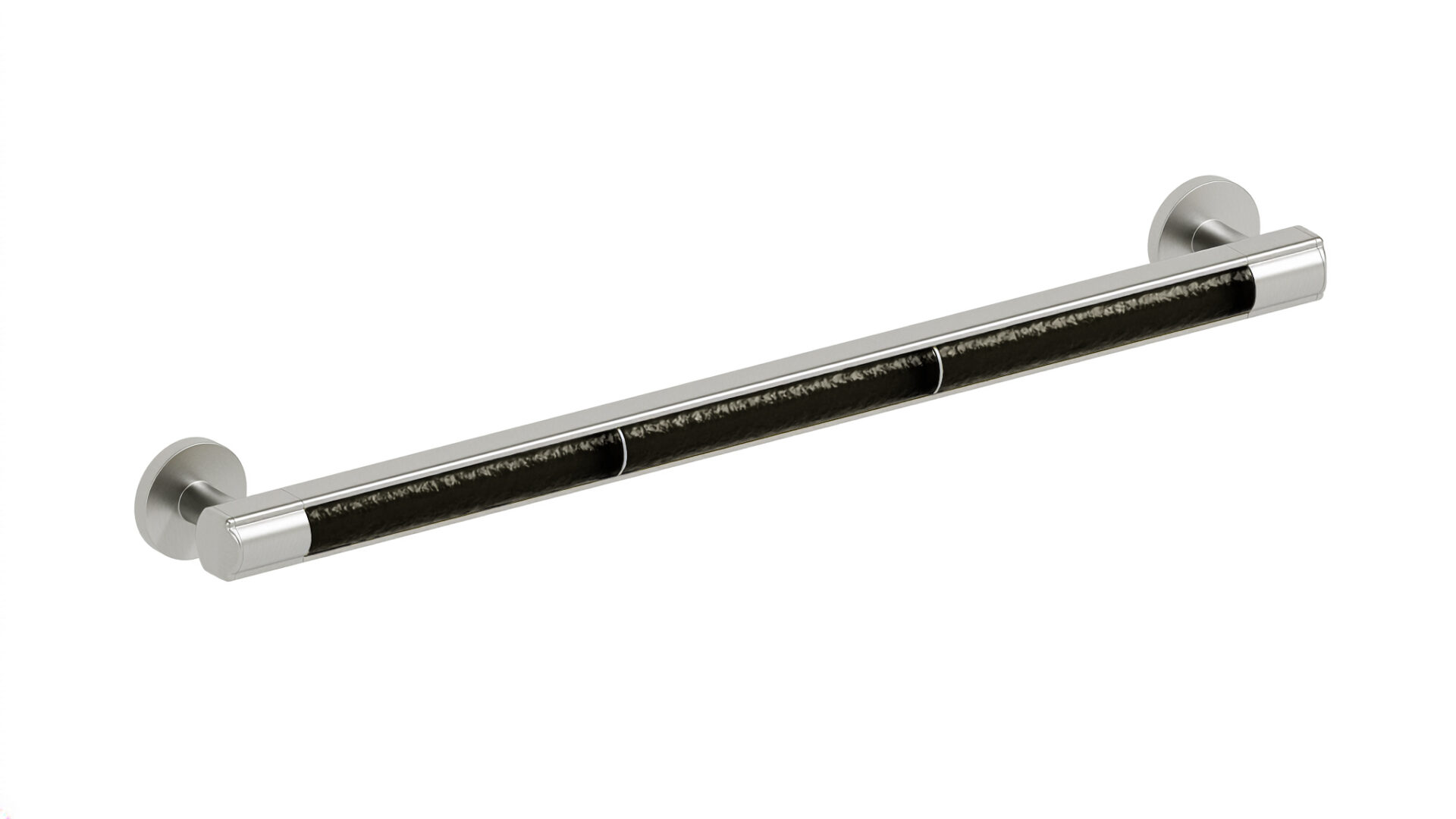

01ST24PC-GLNI NIGHT

BRUSHED NICKEL
01ST24BN-GLFR FROST
01ST24BN-GLSE SEA
01ST24BN-GLSK SKY
01ST24BN-GLSA SAND
01ST24BN-GLTW TWILIGHT
01ST24BN-GLNI NIGHT

MATTE BLACK
01ST24MB-GLFR FROST
01ST24MB-GLSE SEA
01ST24MB-GLSK SKY

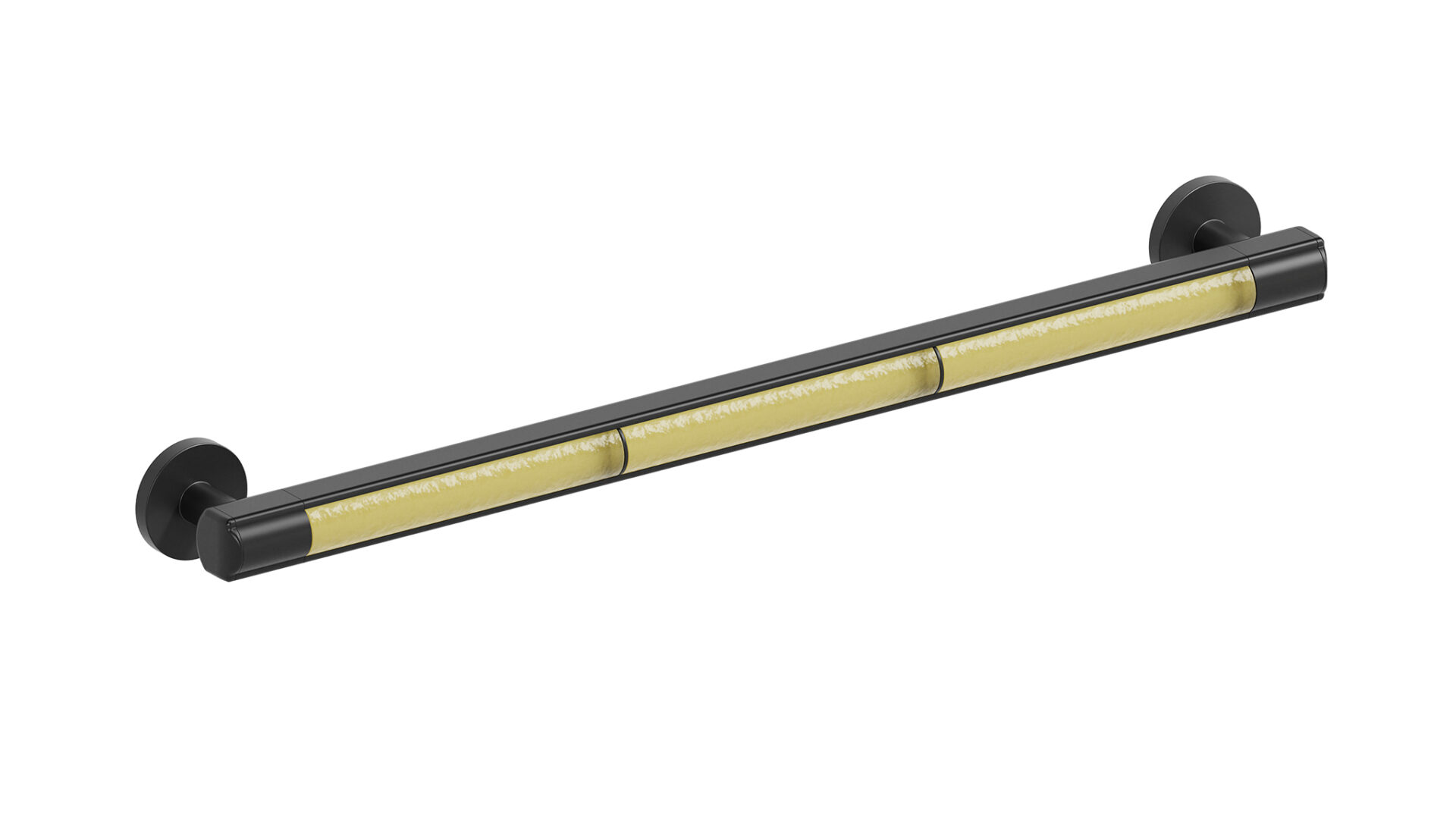

01ST24MB-GLSA SAND
01ST24MB-GLTW TWILIGHT
01ST24MB-GLNI NIGHT

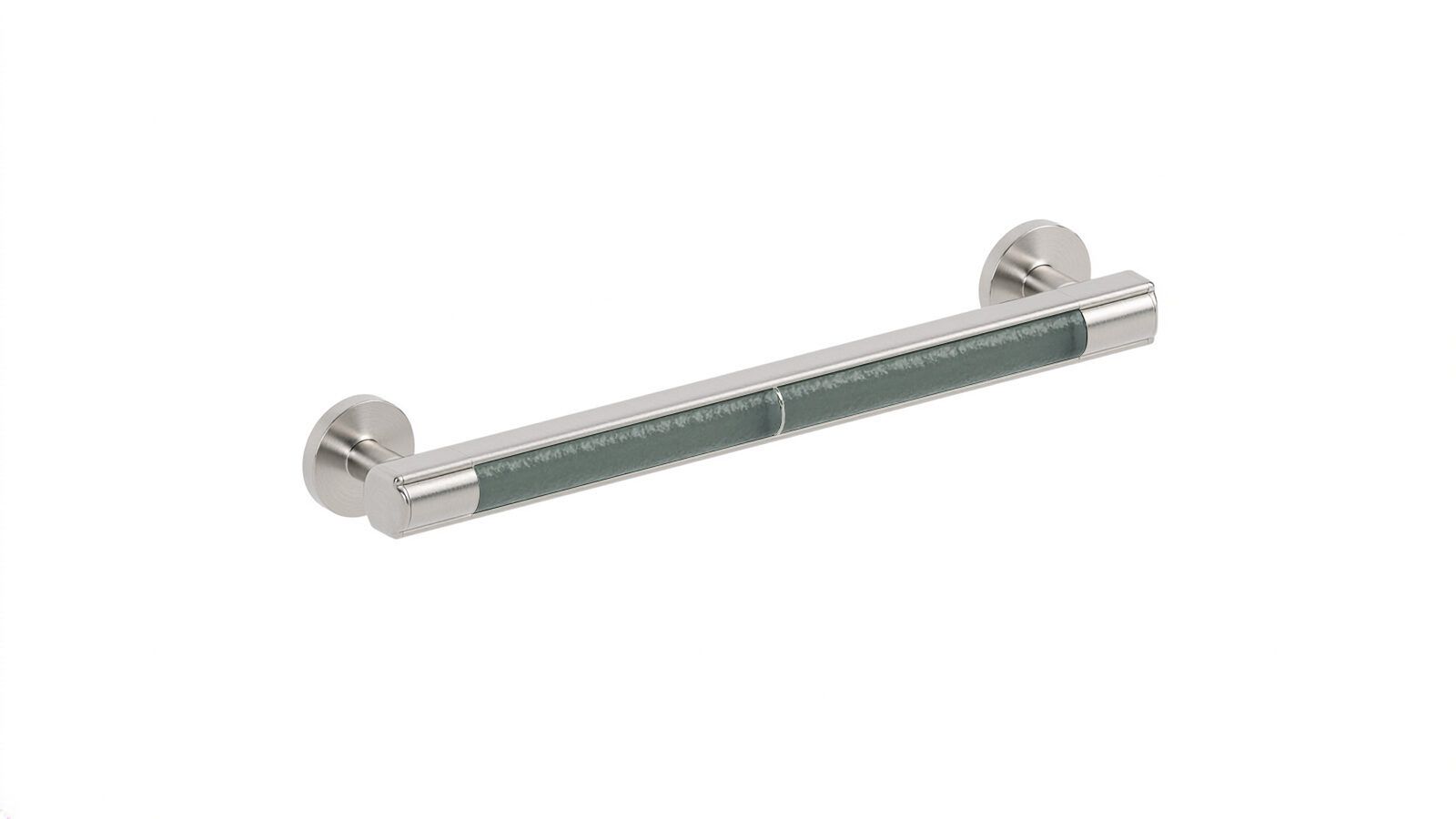

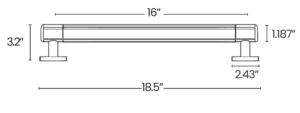

• Center to Center: 16”
• Overall Length: 18.5”
• Insert Length: 14.375”
• Bar Diameter: 1.187”
• Projection from Wall: 3.2”
• Wall Mount Diameter: 2.43”
• Material Spec: 304 SS, 8 Gauge
• Insert Material: Glass
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME
01ST16PC-GLFR FROST
01ST16PC-GLSE SEA
01ST16PC-GLSK SKY
01ST16PC-GLSA SAND
01ST16PC-GLTW TWILIGHT
01ST16PC-GLNI NIGHT

BRUSHED NICKEL
01ST16BN-GLFR FROST
01ST16BN-GLSE SEA
01ST16BN-GLSK SKY
01ST16BN-GLSA SAND
01ST16BN-GLTW TWILIGHT
01ST16BN-GLNI NIGHT

MATTE BLACK
01ST16MB-GLFR FROST
01ST16MB-GLSE SEA
01ST16MB-GLSK SKY
01ST16MB-GLSA SAND
01ST16MB-GLTW TWILIGHT
01ST16MB-GLNI NIGHT

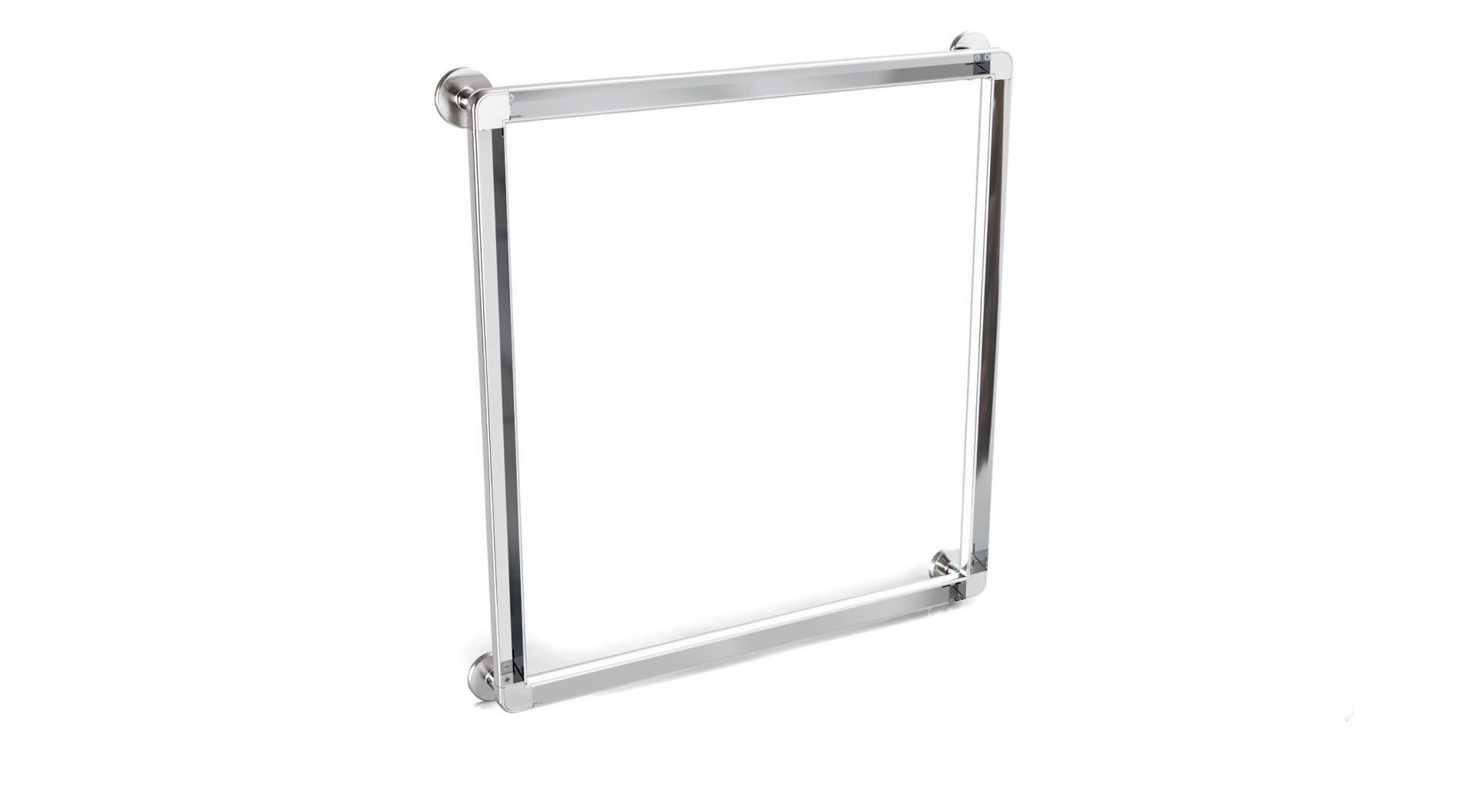

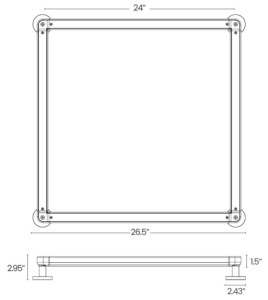

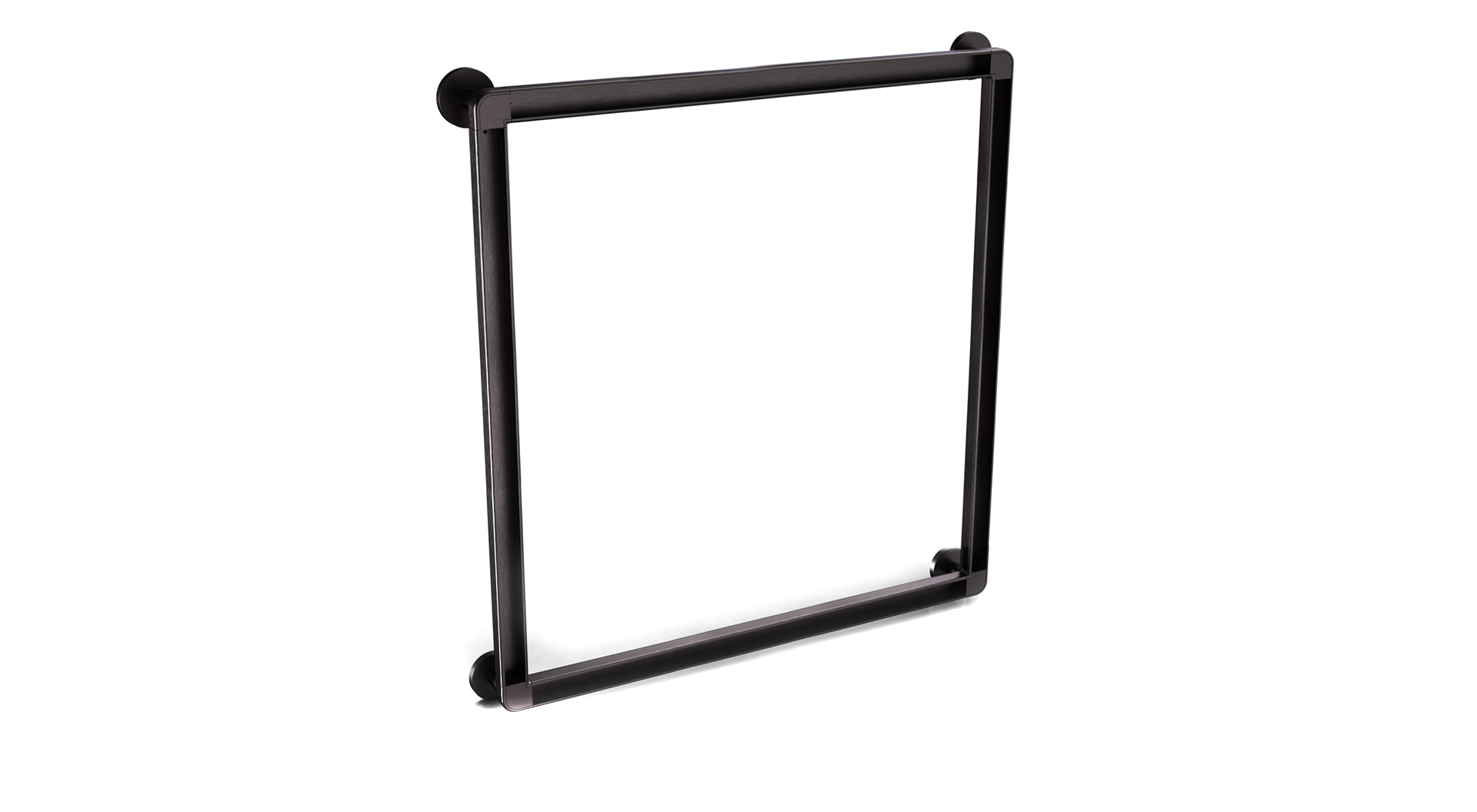

• Center to Center: 24” x 4
• Overall Length: 26.5” x 4
• Cavity Length: 22.375” x 4
• Cavity Depth: 0.75”
• Cavity accepts max 0.5” material
• Bar Diameter: 1.5”
• Projection from Wall: 2.95”
• Wall Mount Diameter: 2.43”
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME
ITEM # 01SQ24PC

BRUSHED NICKEL
ITEM # 01SQ24BN

MATTE BLACK
ITEM # 01SQ24MB

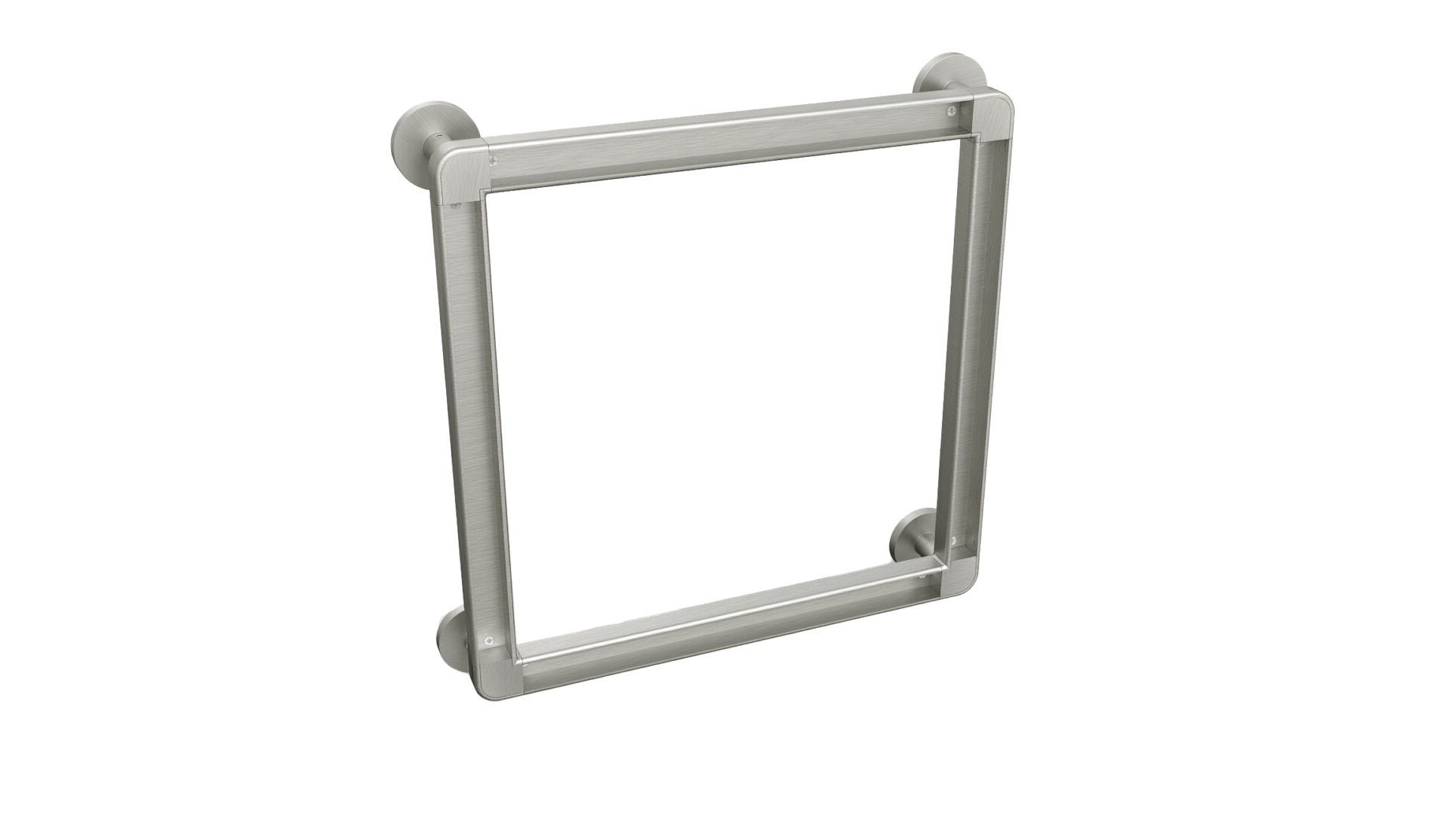

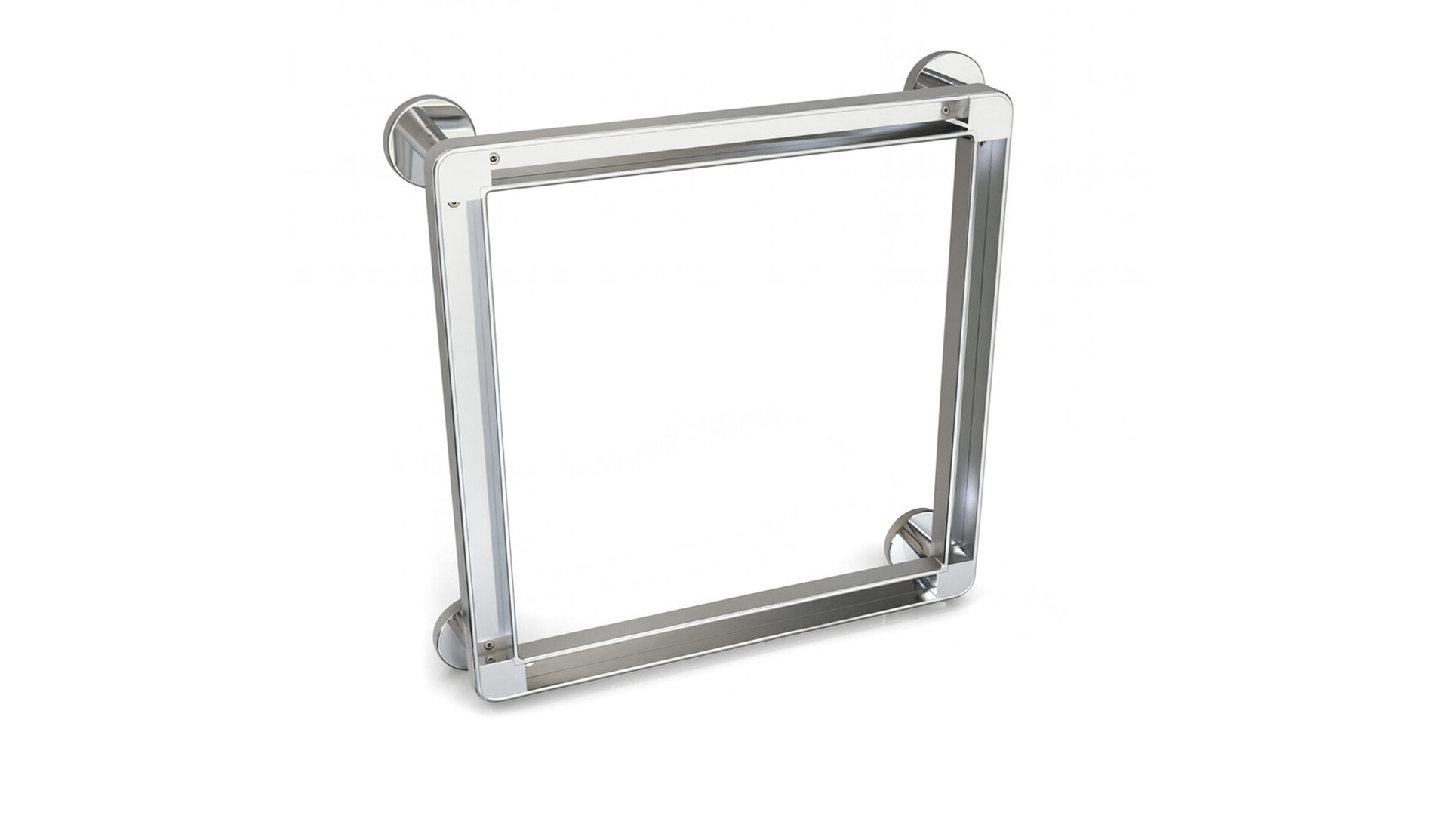

• Center to Center: 16” x 4
• Overall Length: 18.5” x 4
• Cavity Length: 14.375” x 4
• Cavity Depth: 0.75”
• Cavity accepts max 0.5” material
• Bar Diameter: 1.5”
• Projection from Wall: 2.95”
• Wall Mount Diameter: 2.43”
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME
ITEM # 01SQ16PC

BRUSHED NICKEL
ITEM # 01SQ16BN

MATTE BLACK
ITEM # 01SQ16MB

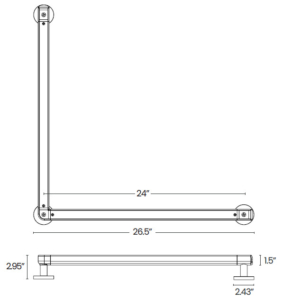

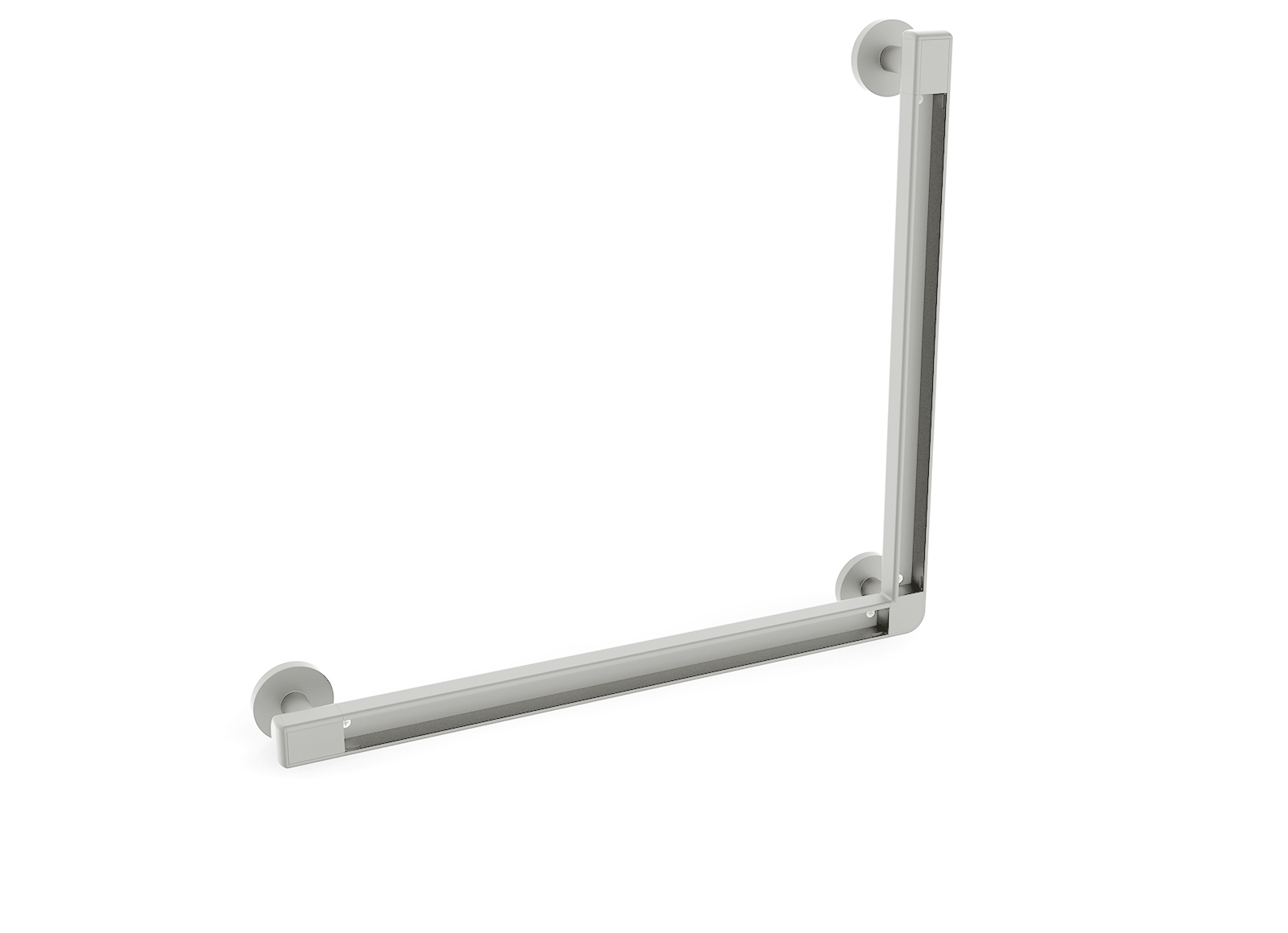

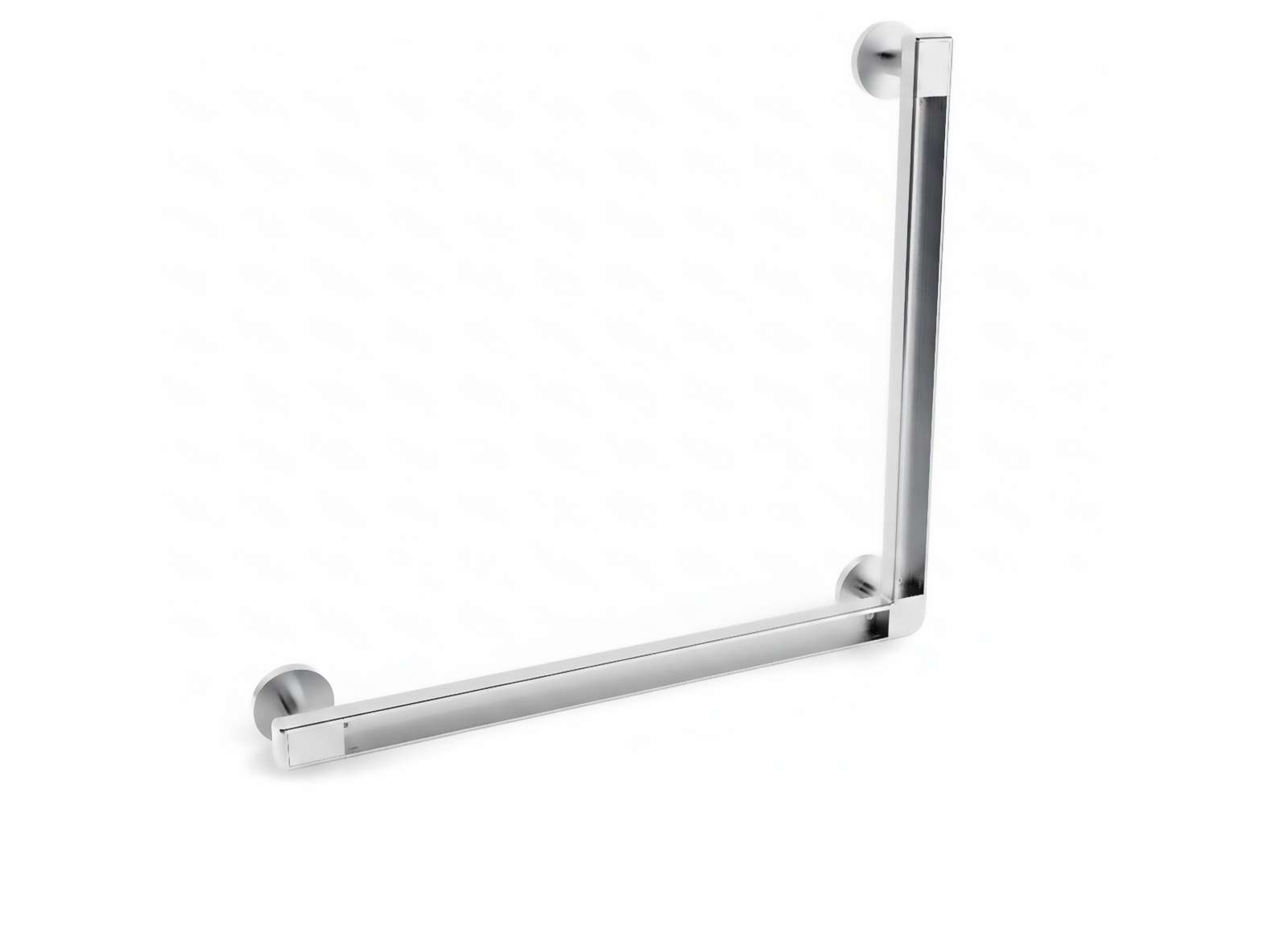

• Center to Center: 24” x 24”
• Overall Length: 26.5” x 26.5”
• Cavity Length with End Inserts: 22.375” x 22.375”
• Cavity Length without End Inserts: 24” x 24”
• Cavity Depth: 0.75”
• Cavity accepts max 0.5” material
• Bar Diameter: 1.5”
• Projection from Wall: 2.95”
• Wall Mount Diameter: 2.43”
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME
ITEM # 01LS24PC

BRUSHED NICKEL
ITEM # 01LS24BN

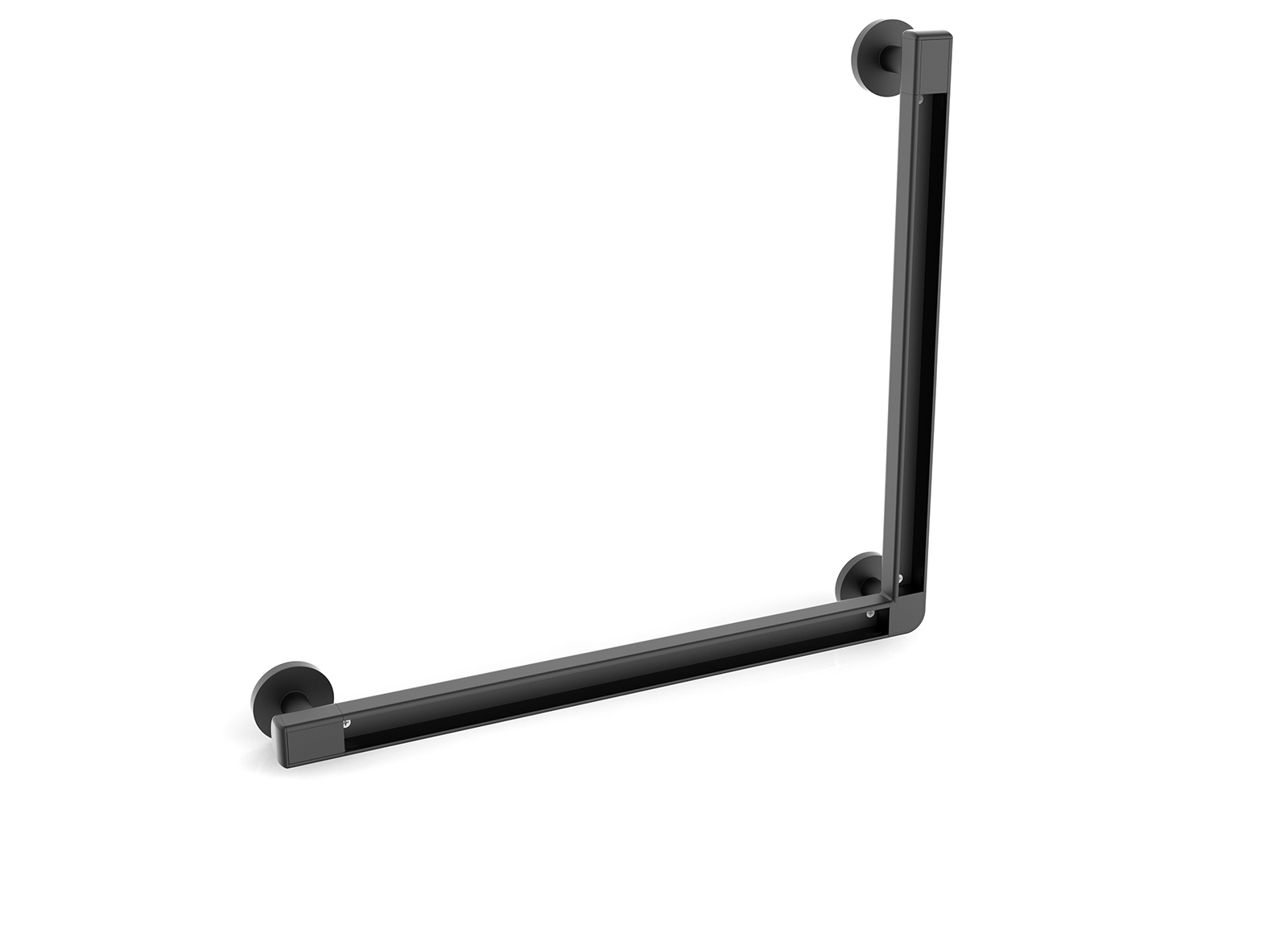

MATTE BLACK
ITEM # 01LS24MB

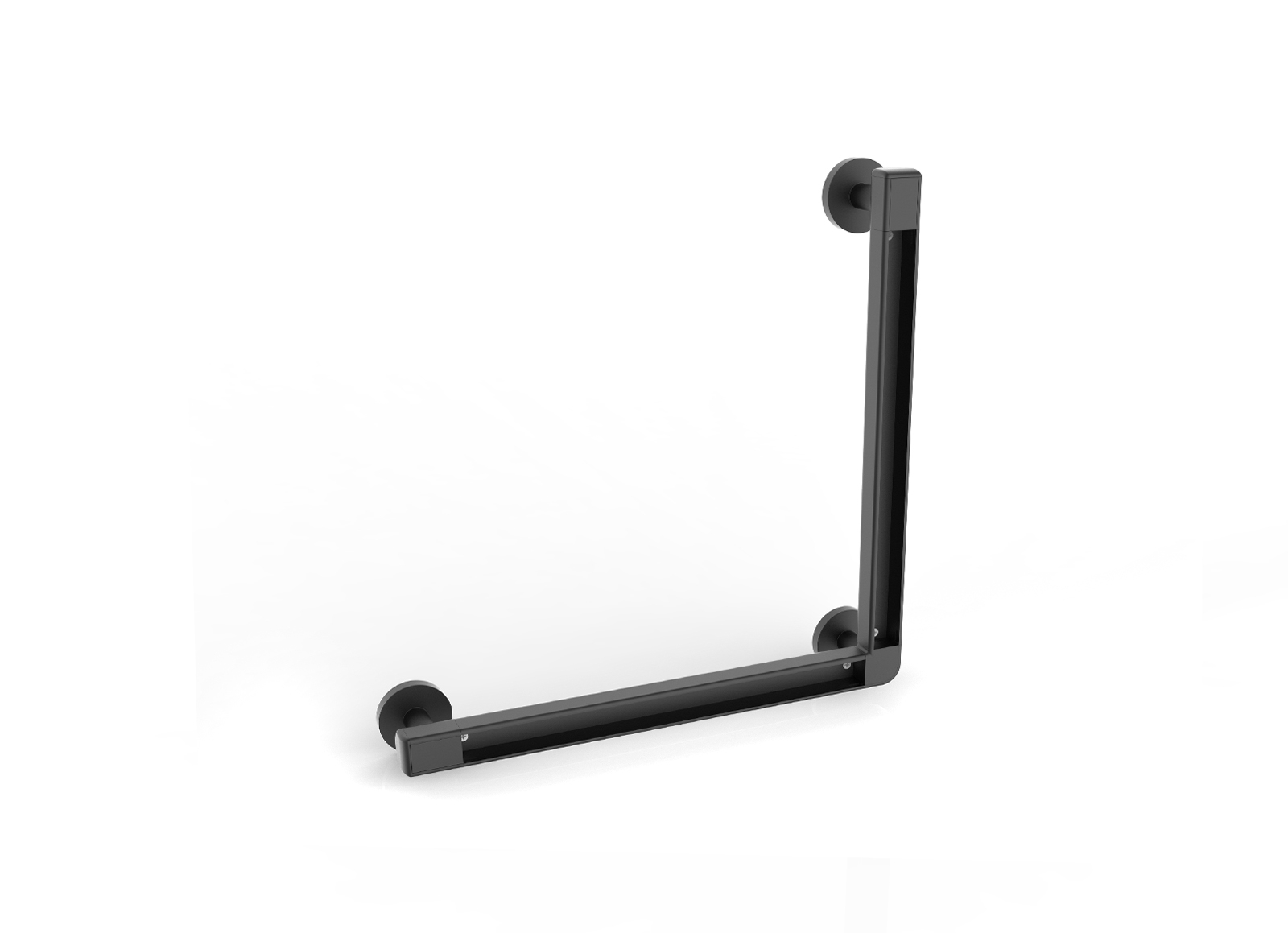

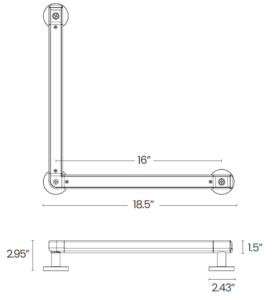

• Center to Center: 16” x 16”
• Overall Length: 18.5” x 18.5”
• Cavity Length with End Inserts: 14.375” x 14.375”
• Cavity Length without End Inserts: 16” x 16”
• Cavity Depth: 0.75”
• Cavity accepts max 0.5” material
• Bar Diameter: 1.5”
• Projection from Wall: 2.95”
• Wall Mount Diameter: 2.43”
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

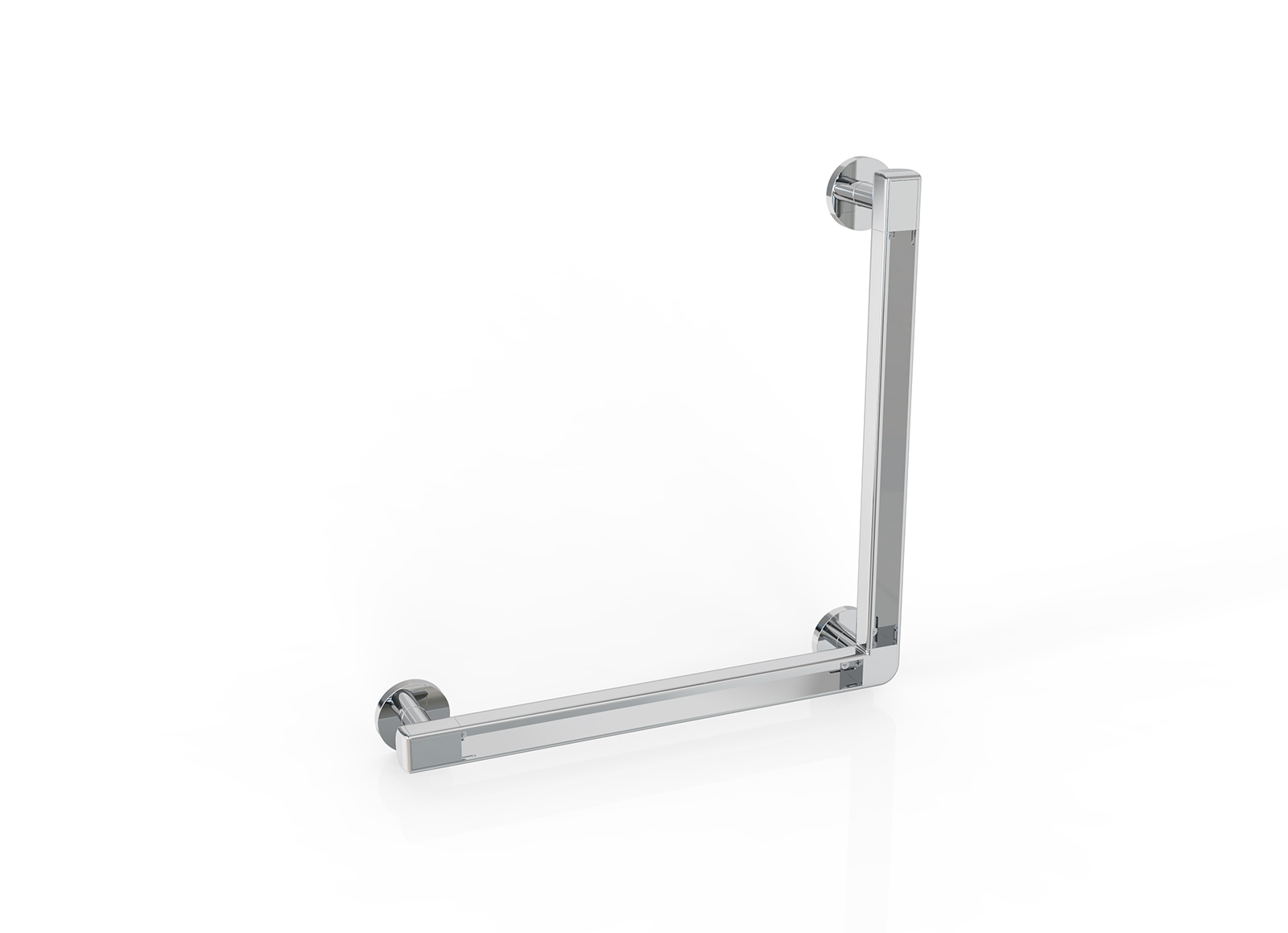

POLISHED CHROME
ITEM # 01LS16PC

BRUSHED NICKEL
ITE #01LS16BN

MATTE BLACK
ITEM # 01LS16MB

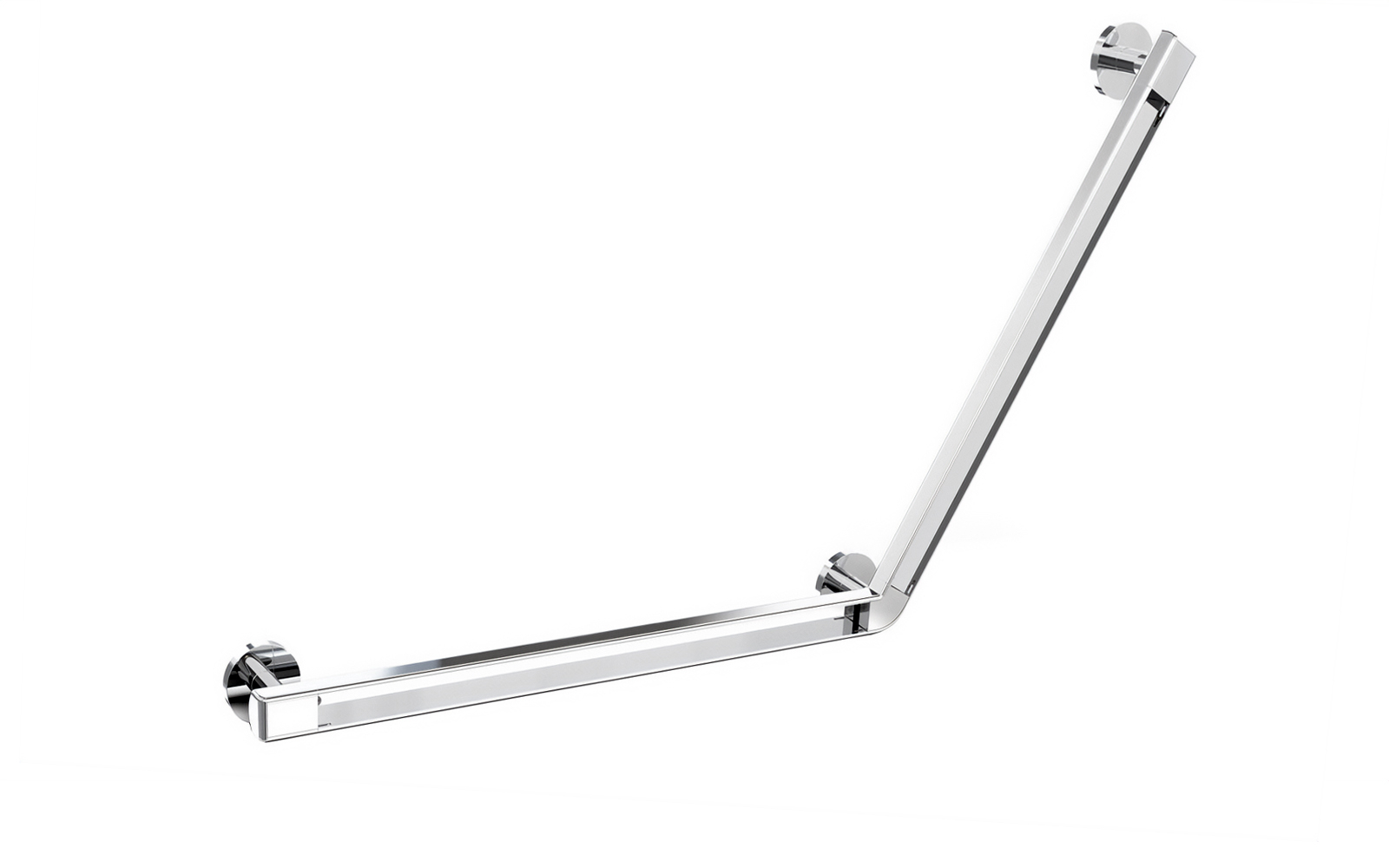

• Center to Center: 24” x 24”
• Overall Length: 26.5” x 26.5”
• Cavity Length with End Inserts: 22.375” x 22.375”
• Cavity Length without End Inserts: 24” x 24”
• Cavity Depth: 0.75”
• Cavity accepts max 0.5” material
• Bar Diameter: 1.5”
• Projection from Wall: 2.95”
• Wall Mount Diameter: 2.43”
• Overall Wall Space: 23.25” x 38.5”
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

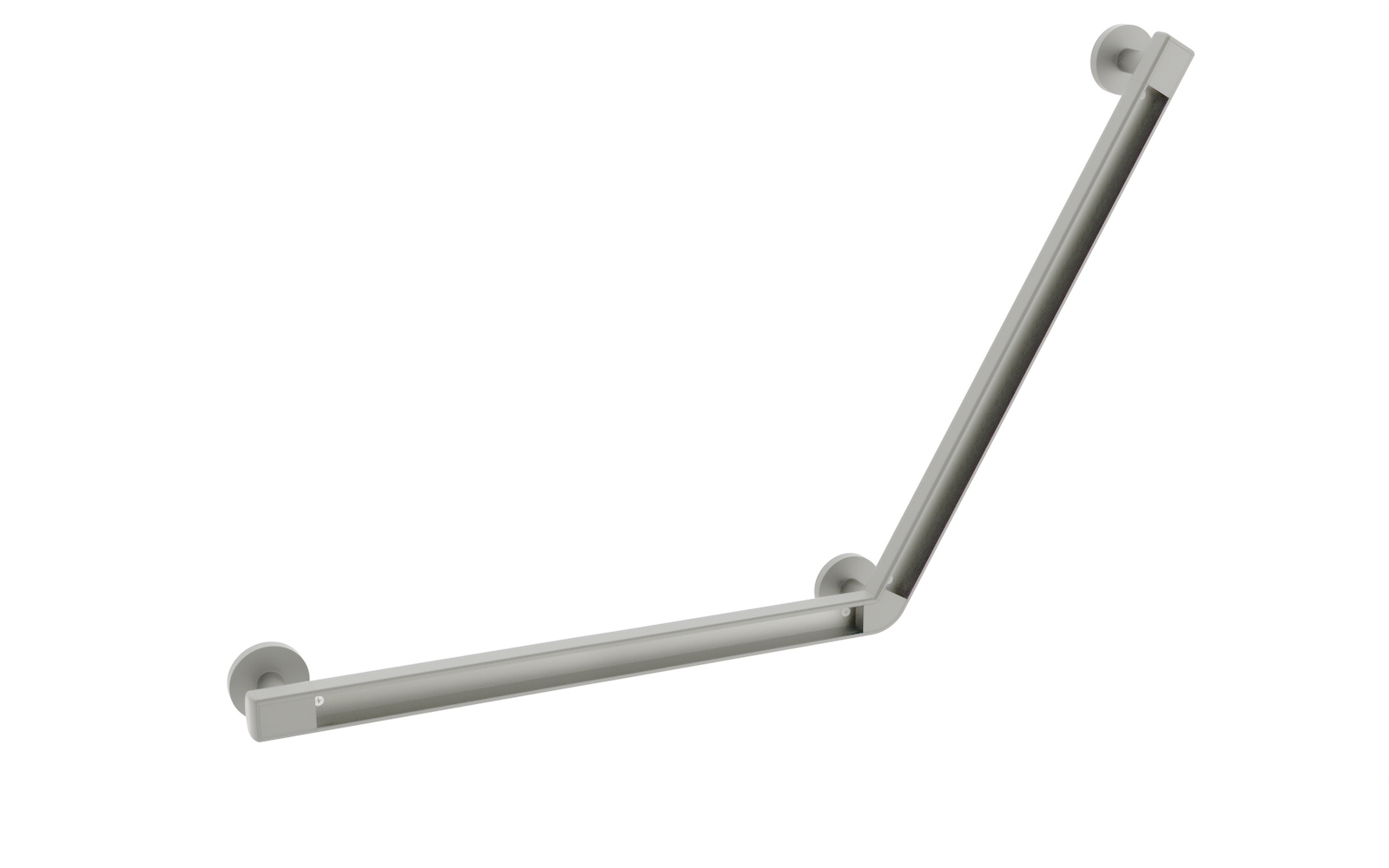

POLISHED CHROME
ITEM # 01AN24PC

BRUSHED NICKEL
ITEM # 01AN24BN

MATTE BLACK
ITEM 01AN24MB

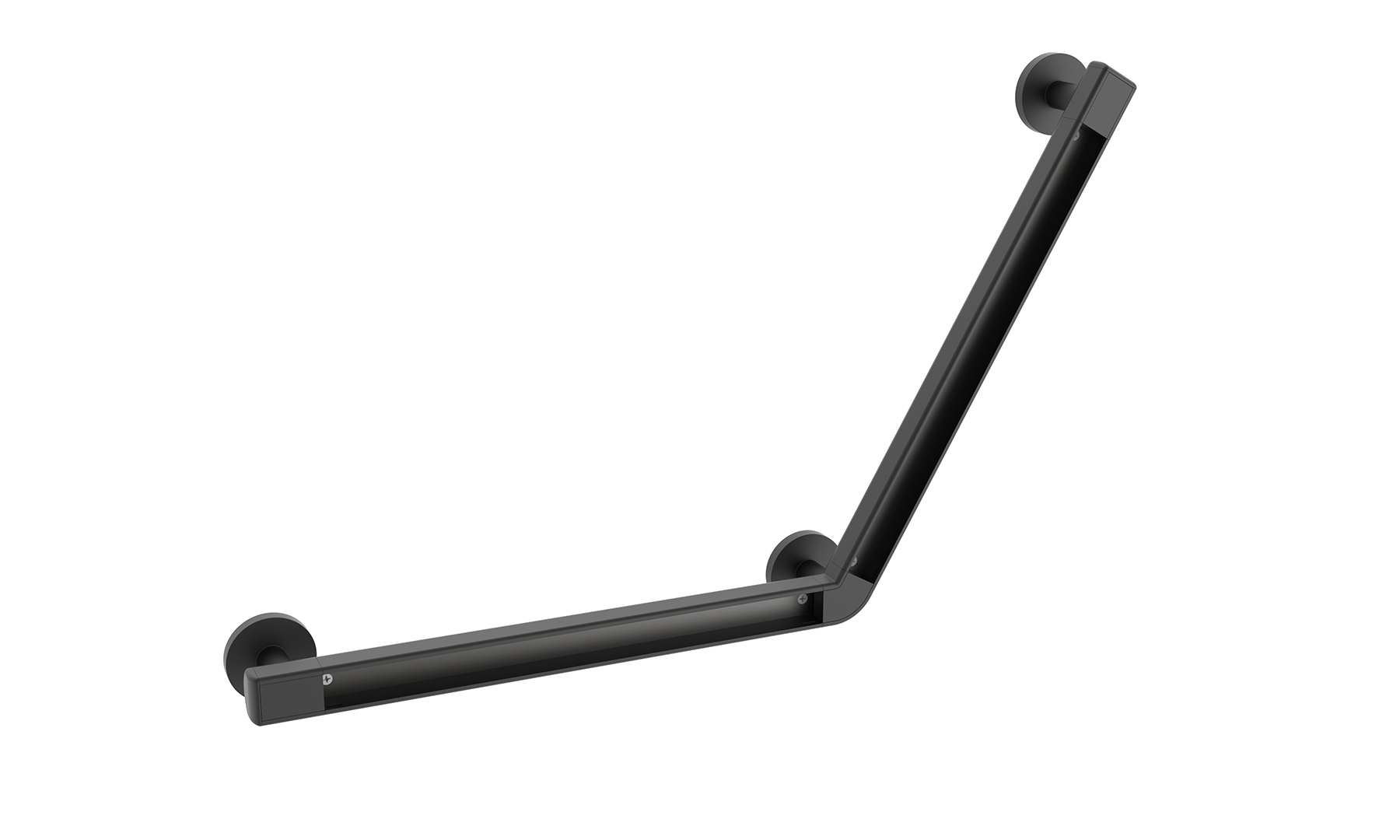

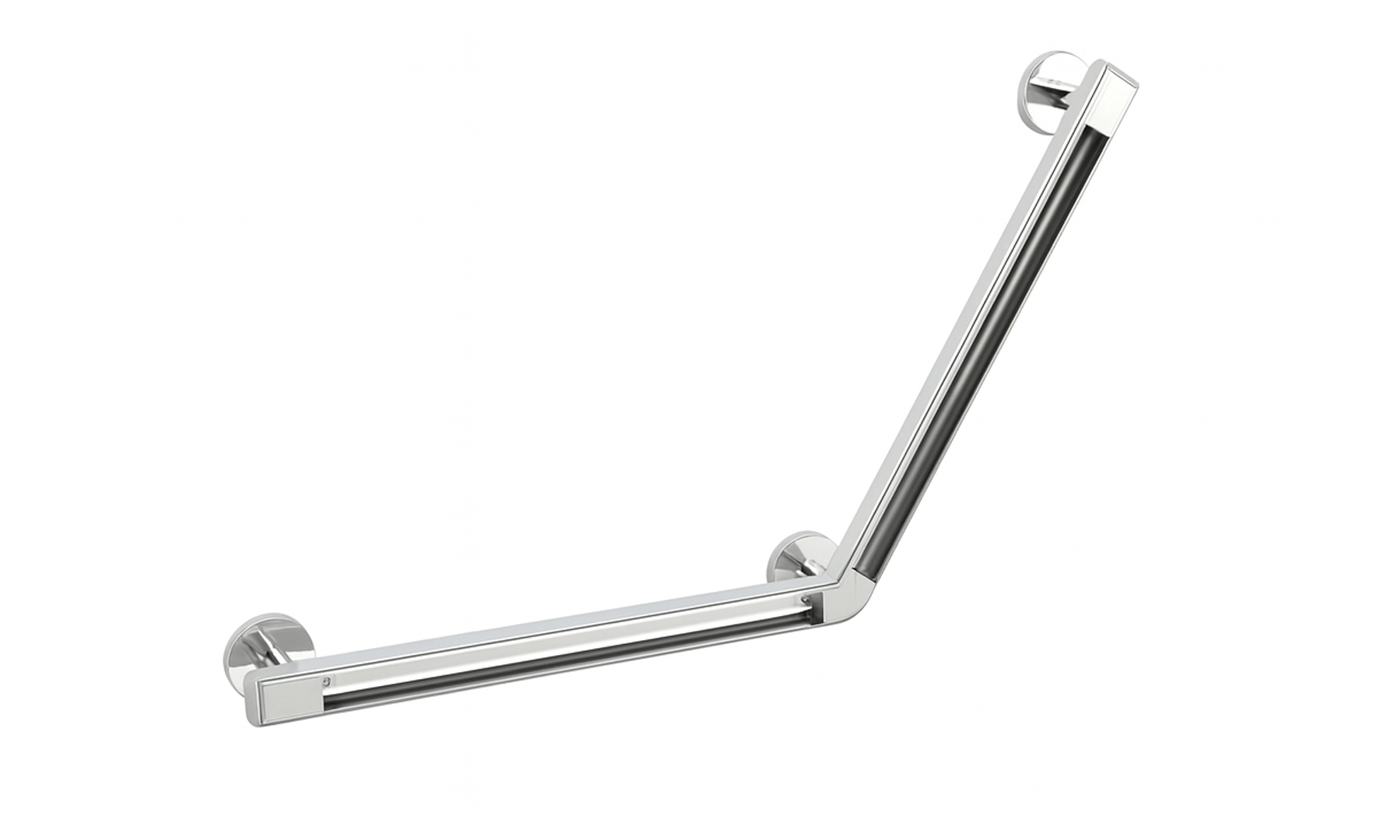

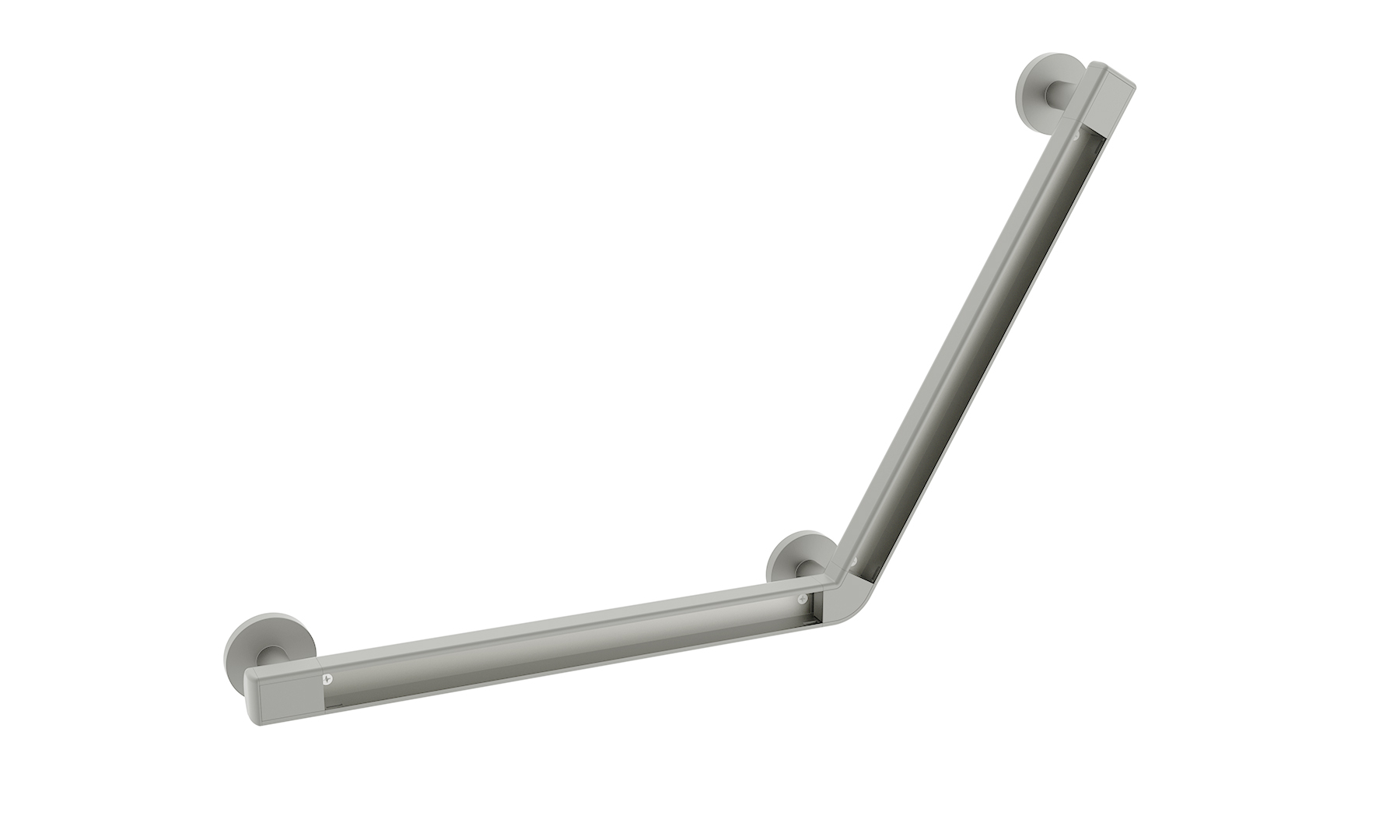

• Center to Center: 16” x 16”
• Overall Length: 18.5” x 18.5”
• Cavity Length with End Inserts: 14.375” x 14.375”
• Cavity Length without End Inserts: 16” x 16”
• Cavity Depth: 0.75”
• Cavity accepts max 0.5” material
• Bar Diameter: 1.5”
• Projection from Wall: 2.95”
• Wall Mount Diameter: 2.43”
• Overall Wall Space: 16.25” x 26.5”
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME
ITEM # 01AN16PC

BRUSHED NICKEL
ITEM # 01AN16BN

MATTE BLACK
ITEM # 01AN16MB

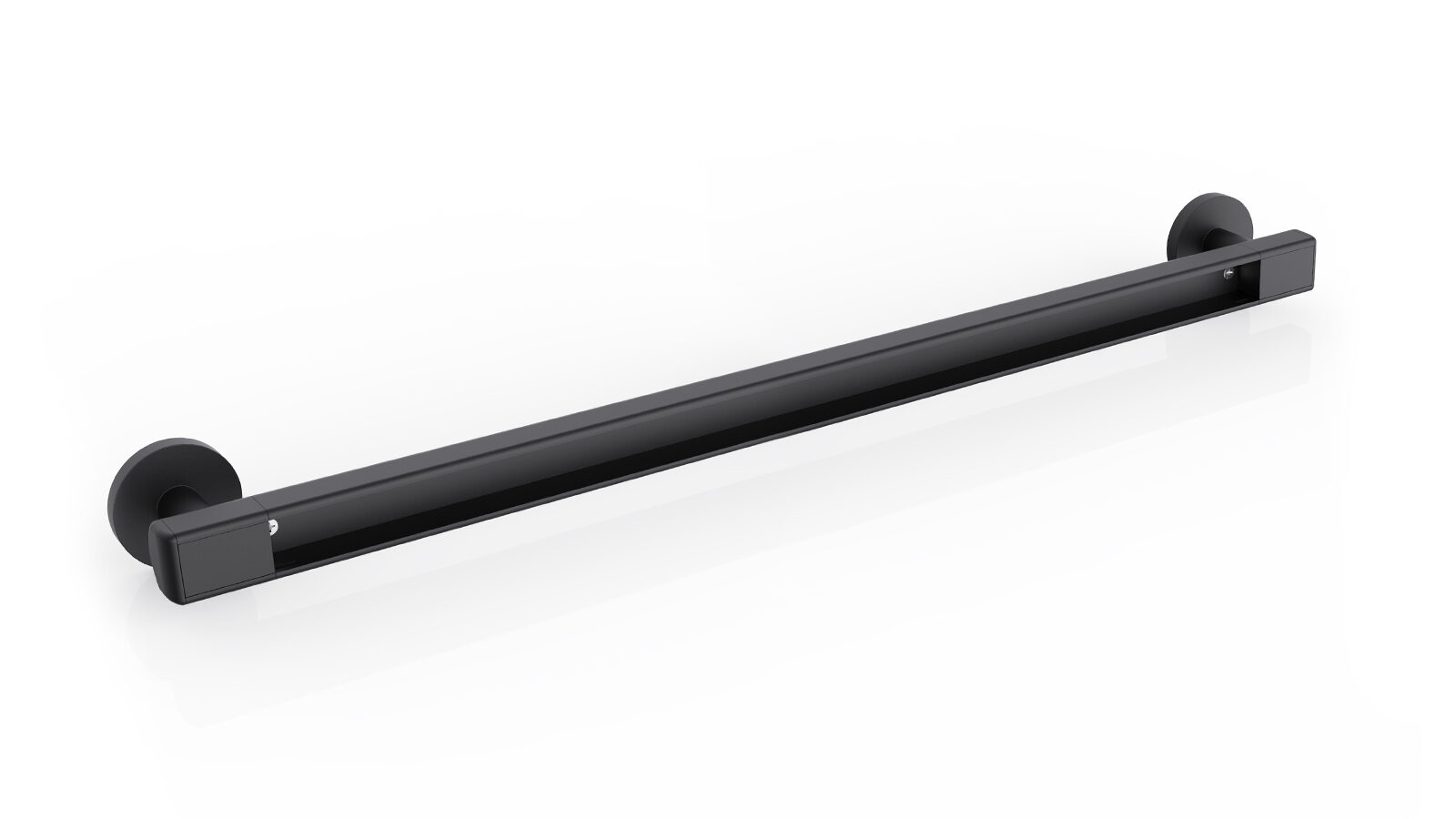

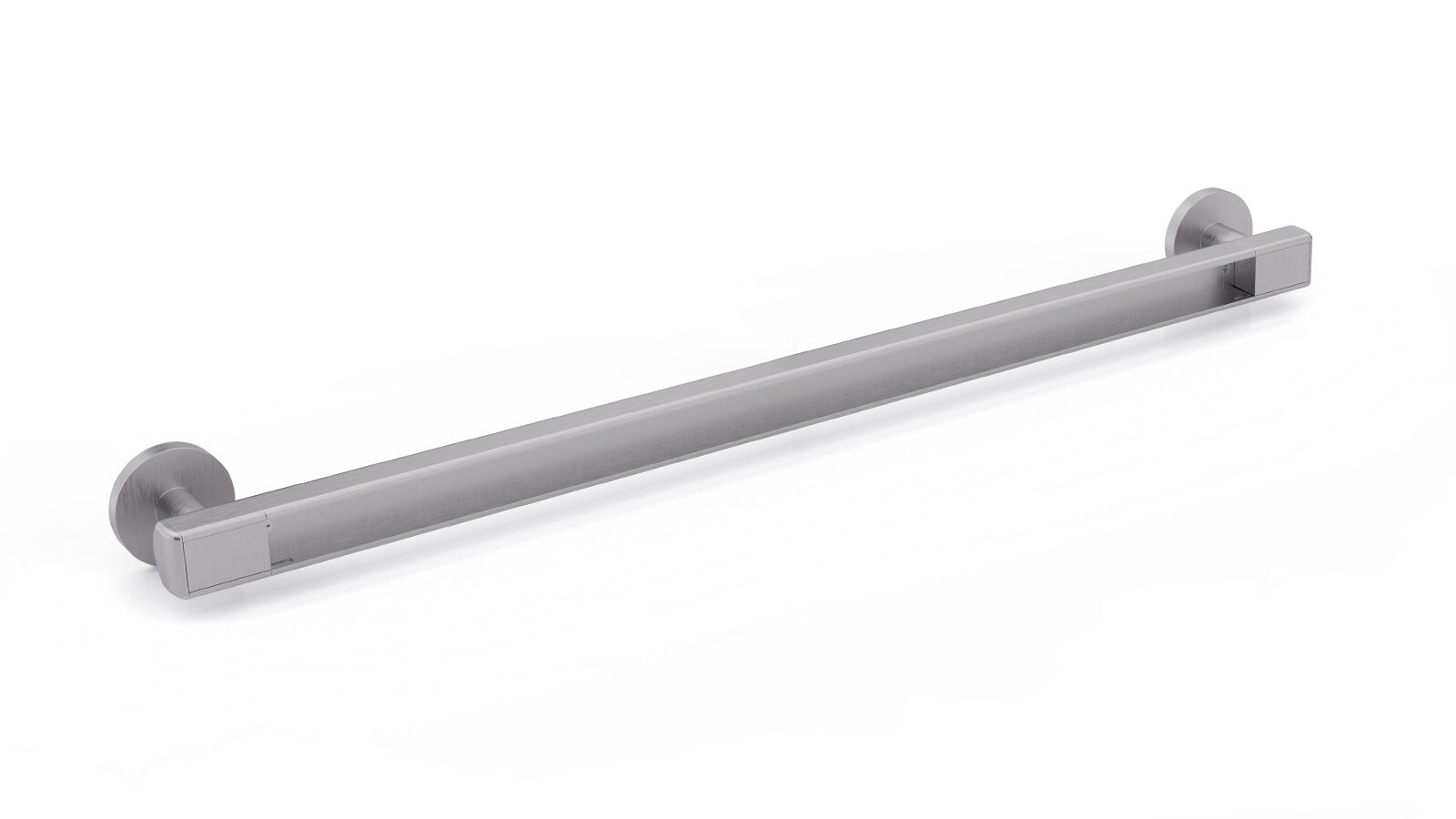

• Center to Center: 24”
• Overall Length: 26.5”
• Cavity Length with End Inserts: 22.375”
• Cavity Length without End Inserts: 25.675”
• Cavity Depth: 0.75”
• Cavity accepts max 0.5” material
• Bar Diameter: 1.5”
• Projection from Wall: 2.95”
• Wall Mount Diameter: 2.43”
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME
ITEM # 01ST24PC

BRUSHED NICKEL
ITEM # 01ST24BN

MATTE BLACK
ITEM # 01ST24MB

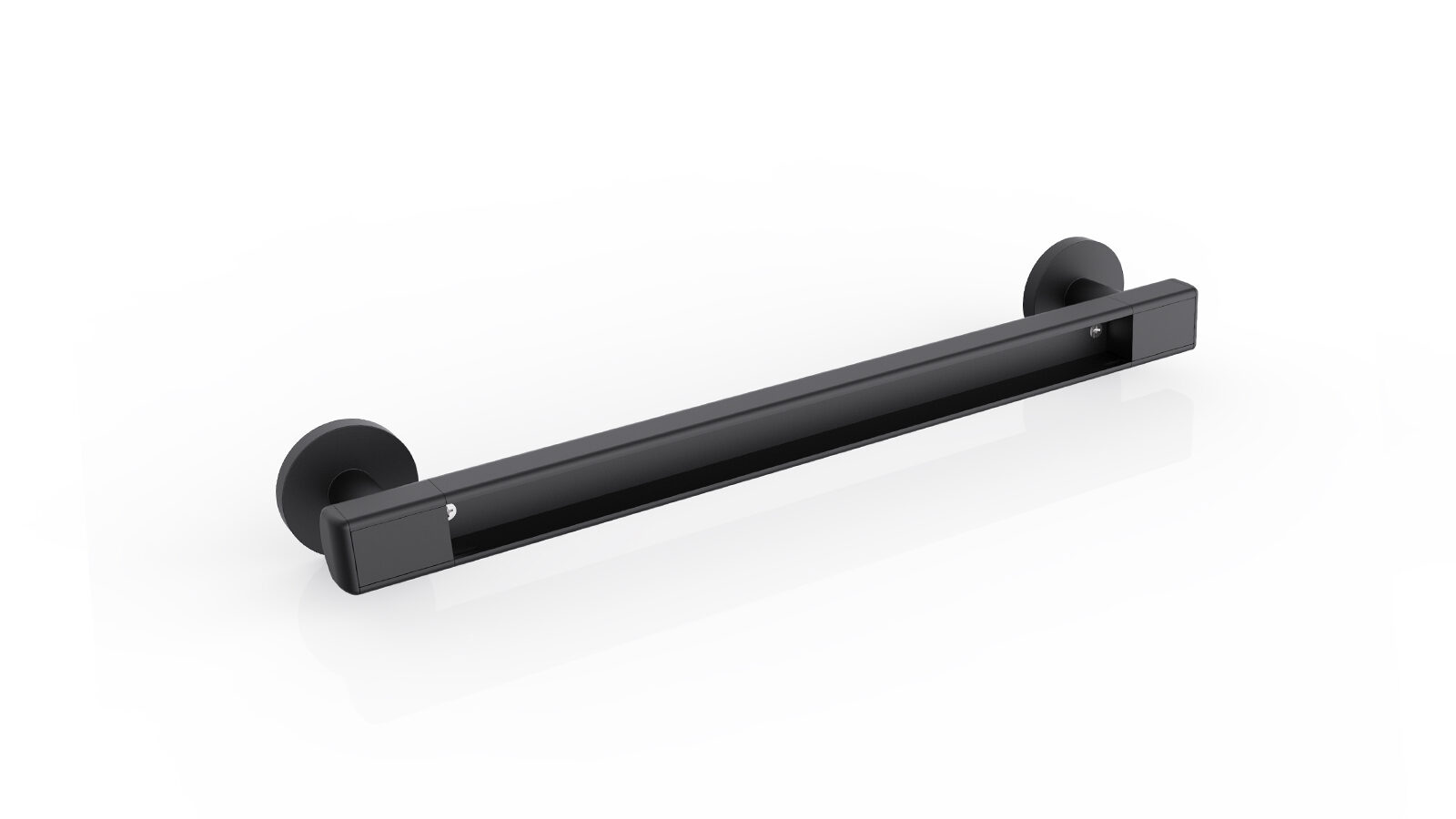

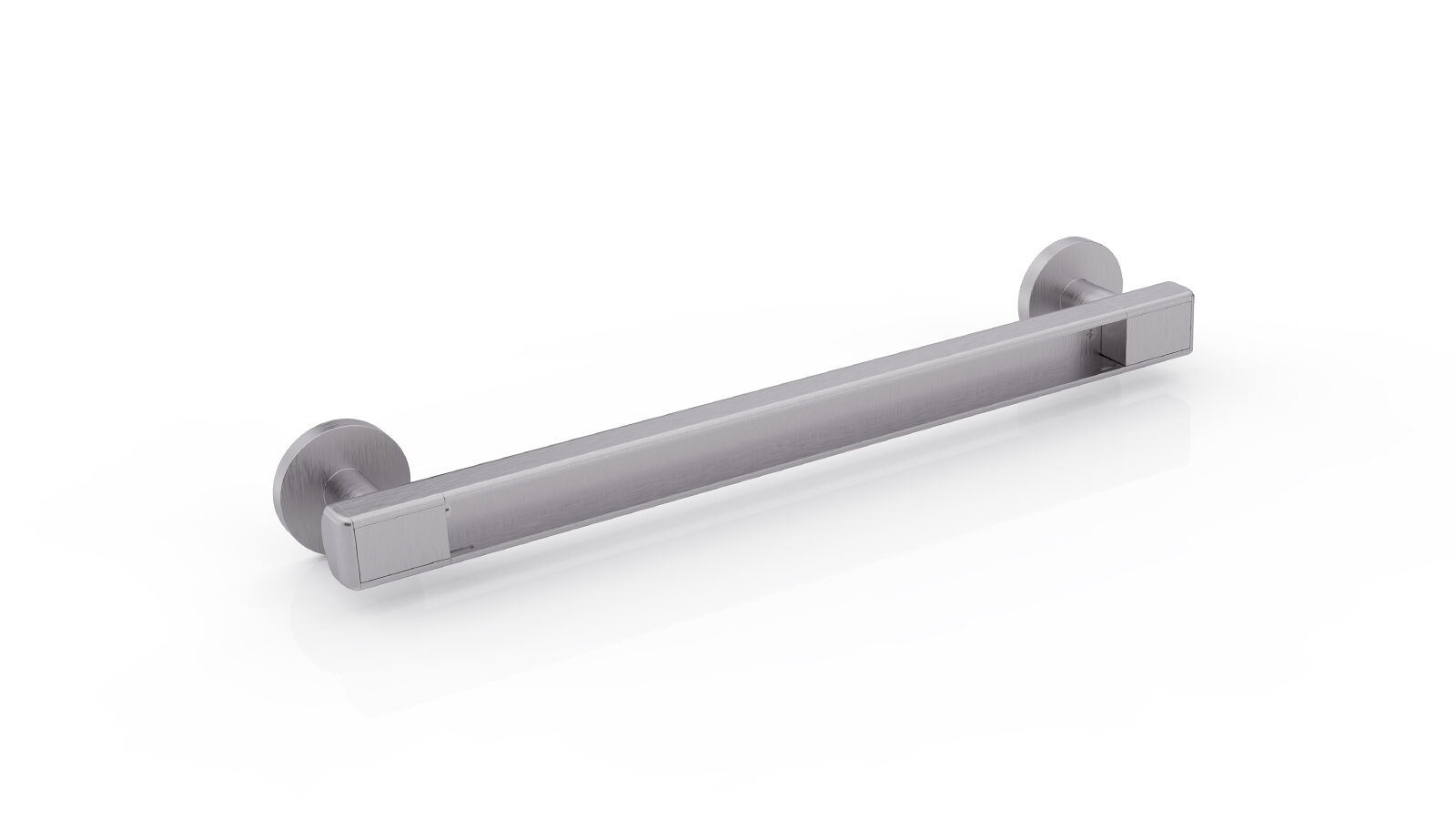

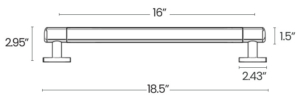

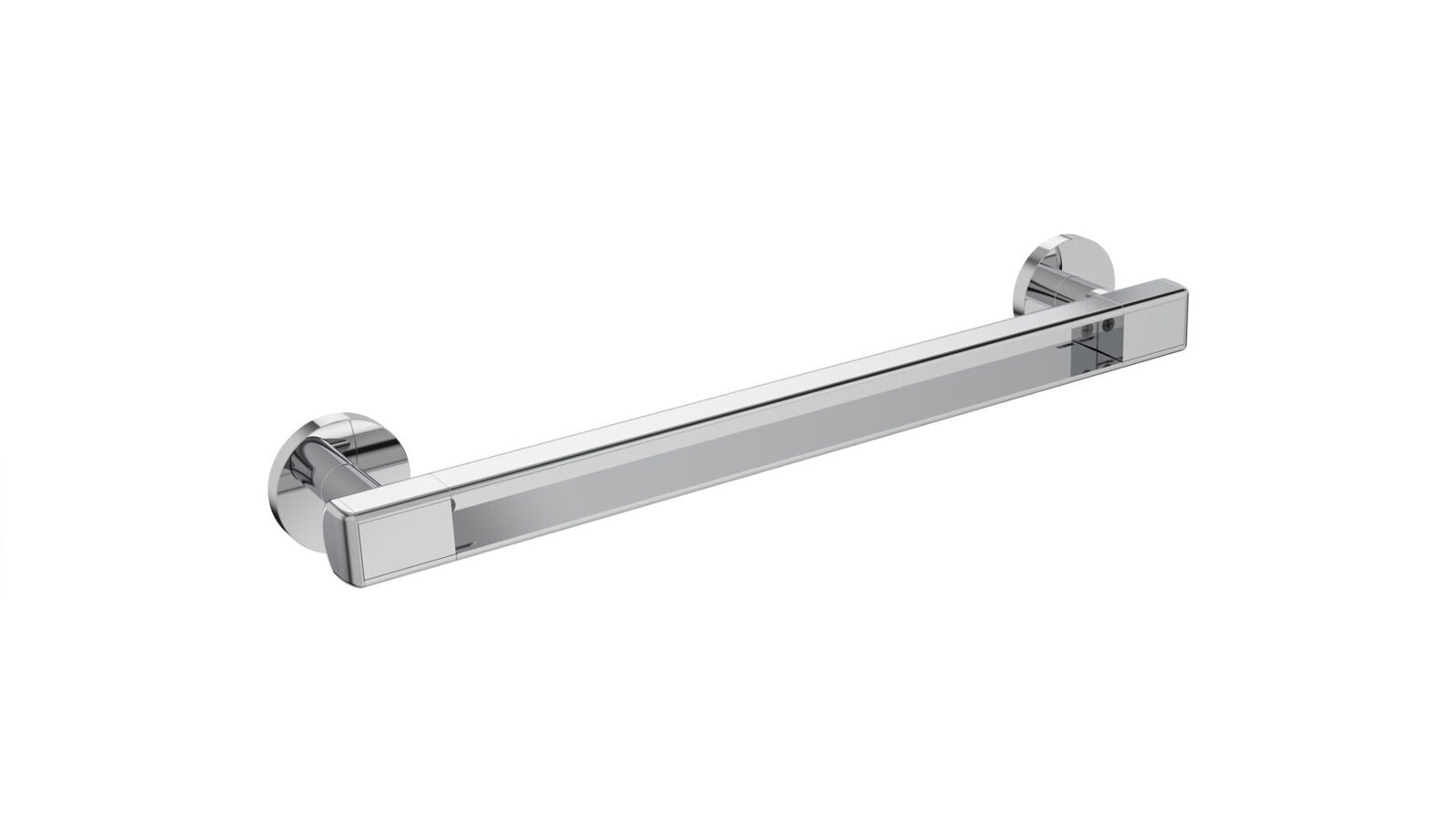

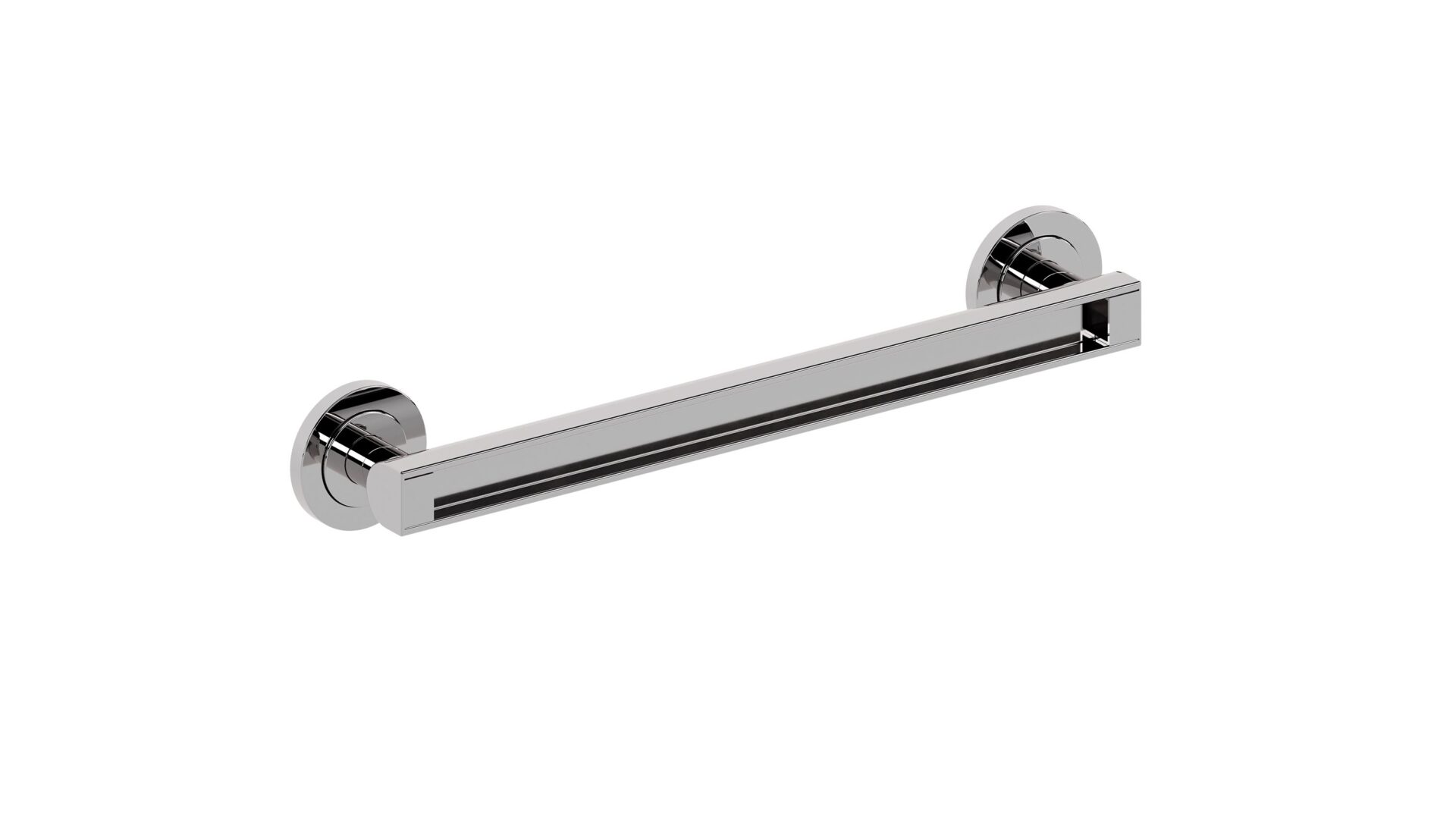

• Center to Center: 16”
• Overall Length: 18.5”
• Cavity Length with End Inserts: 14.375”
• Cavity Length without End Inserts: 17.675”
• Cavity Depth: 0.75”
• Cavity accepts max 0.5” material
• Bar Diameter: 1.5”
• Projection from Wall: 2.95”
• Wall Mount Diameter: 2.43”
• Material Spec: 304 SS, 8 Gauge
• Load bearing up to 300 lbs
• ADA Certified

POLISHED CHROME
ITEM # 01ST16PC

BRUSHED NICKEL
ITEM # 01ST16BN

MATTE BLACK
ITEM # 01ST16MB

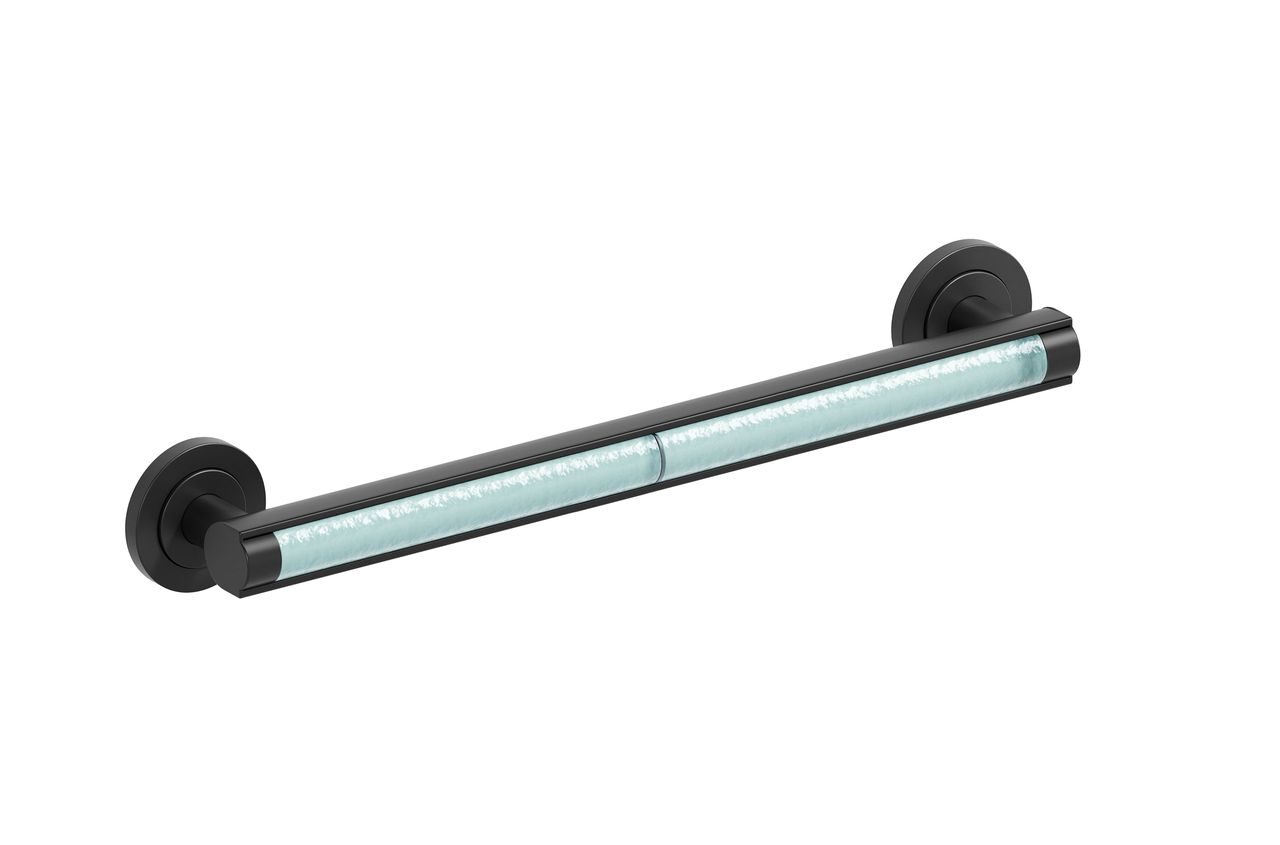

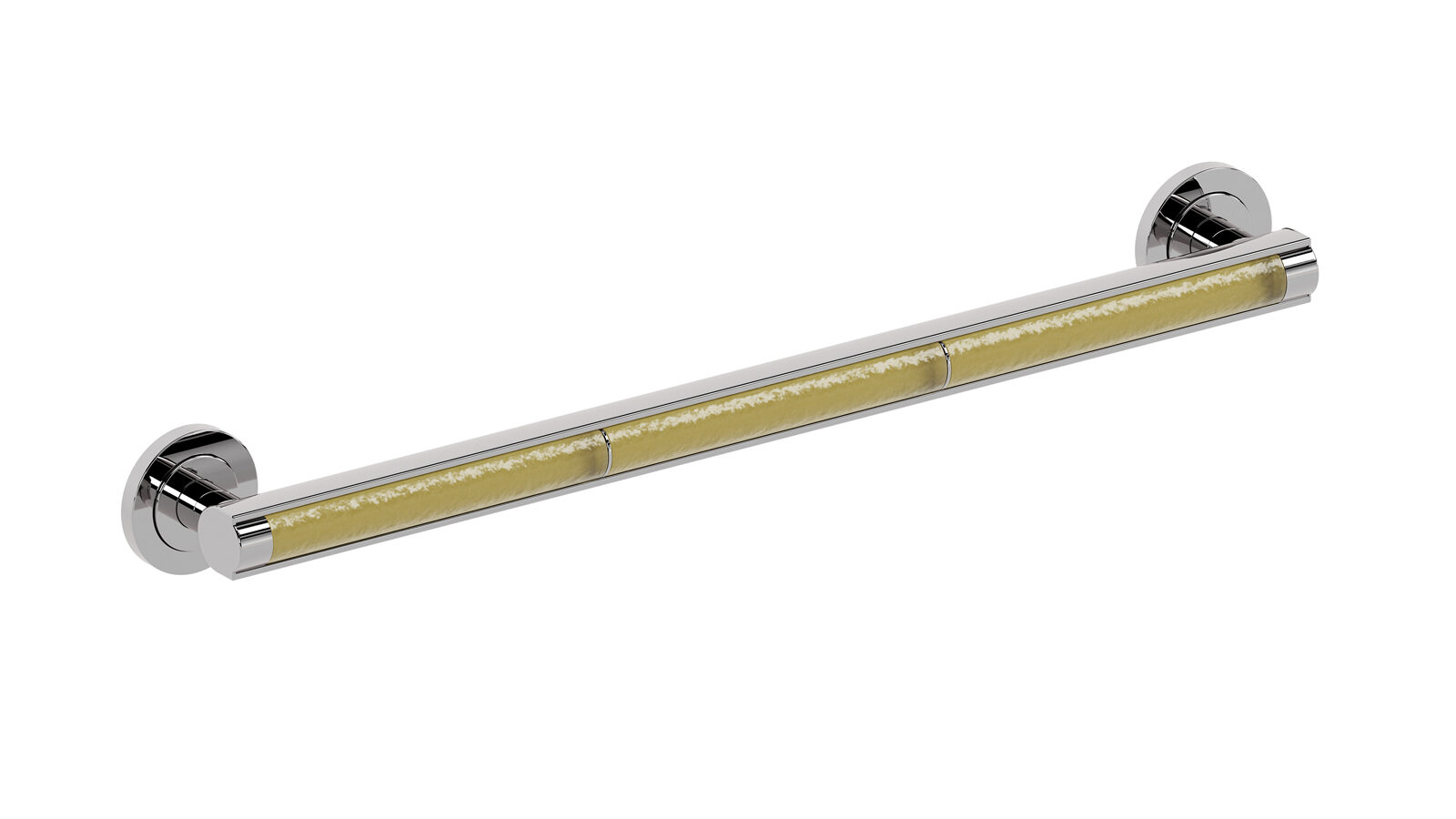

• Center to Center: 24”
• Overall Length: 27”
• Insert Length: 24”
• Bar Diameter: 1.5”
• Projection from Wall: 3.06”
• Wall Mount Diameter: 2.98”
• Material Spec: 304 SS, 20 Gauge
• Insert Material: Glass
• Load bearing up to 300 lbs
• ADA Compliant

POLISHED CHROME
05ST24PC-GLFR FROST
05ST24PC-GLSE SEA
05ST24PC-GLSK SKY
05ST24PC-GLSA SAND
05ST24PC-GLTW TWILIGHT
05ST24PC-GLNI NIGHT

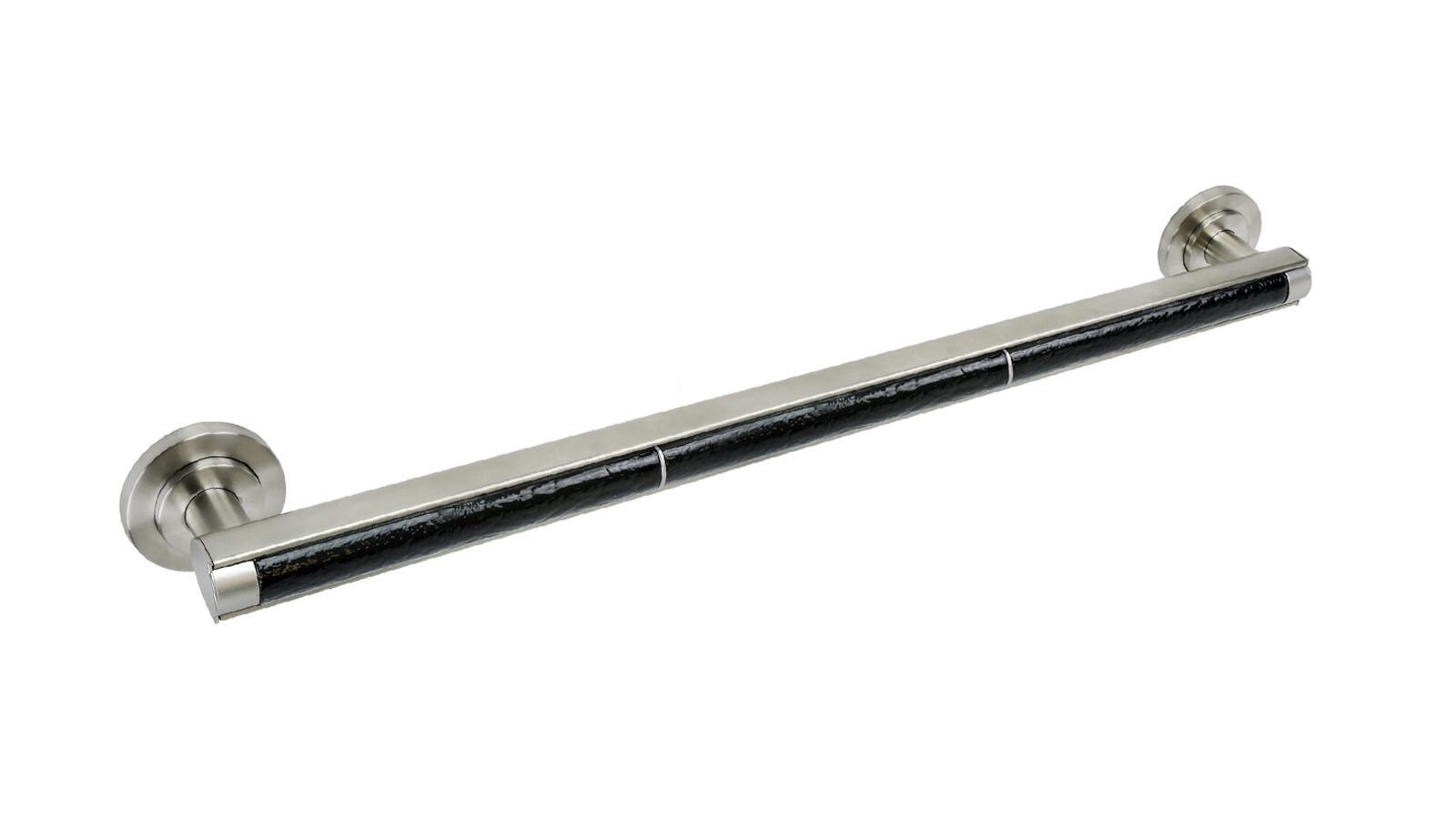

BRUSHED NICKEL
05ST24BN-GLFR FROST
05ST24BN-GLSE SEA
05ST24BN-GLSK SKY
05ST24BN-GLSA SAND
05ST24BN-GLTW TWILIGHT

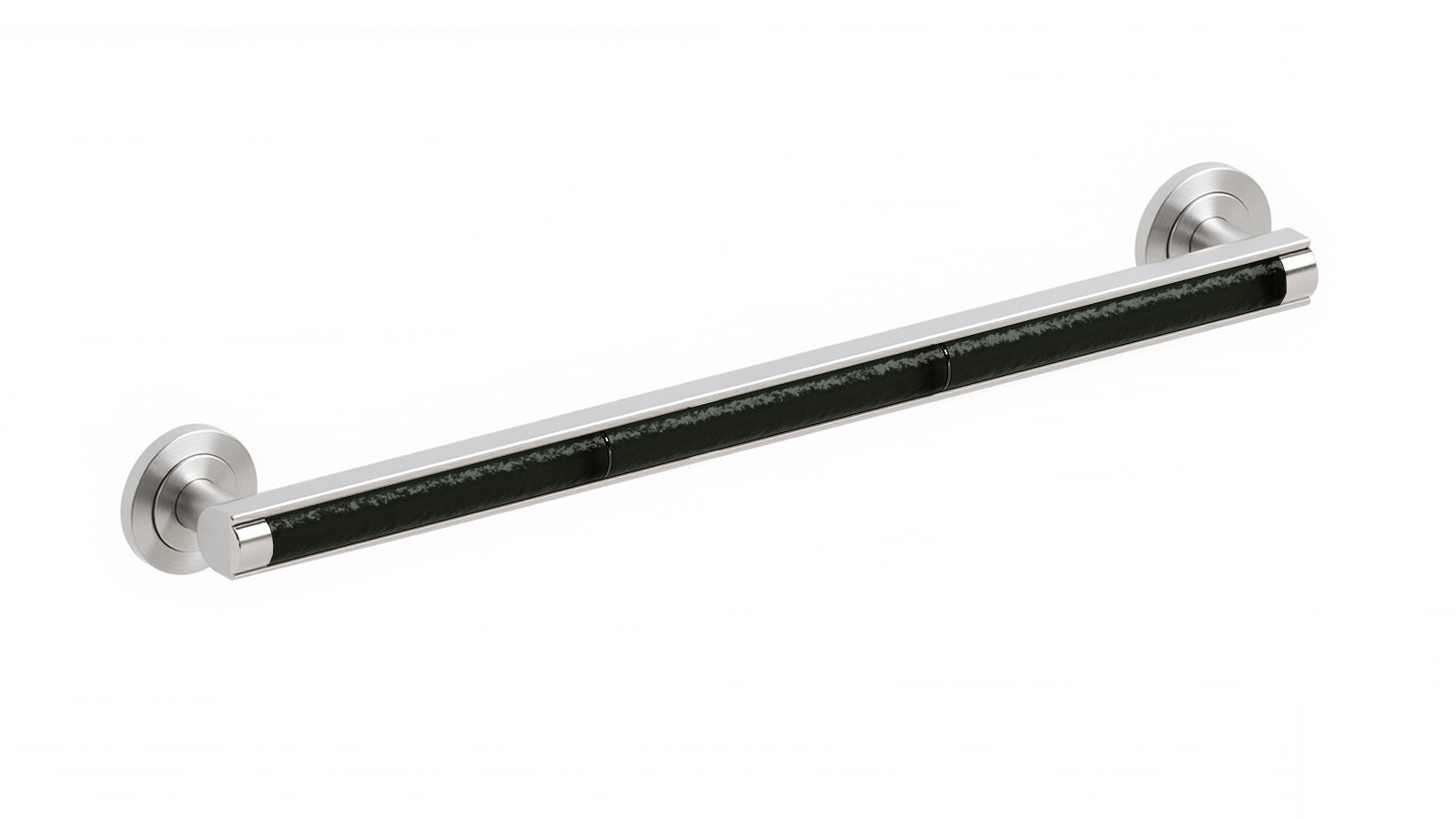

05ST24BN-GLNI NIGHT

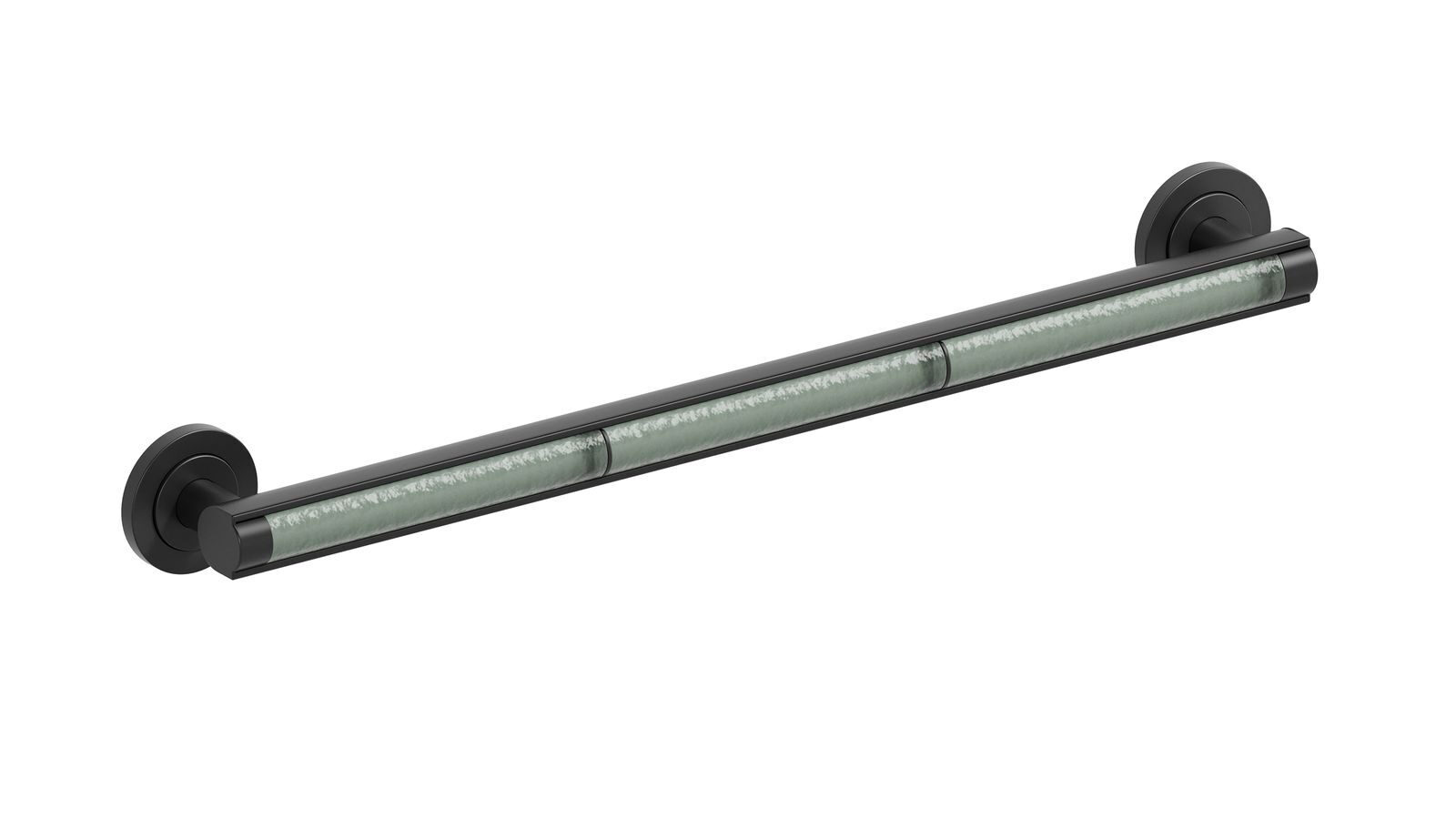

MATTE BLACK
05ST24MB-GLFR FROST
05ST24MB-GLSE SEA
05ST24MB-GLSK SKY
05ST24MB-GLSA SAND
05ST24MB-GLTW TWILIGHT
05ST24MB-GLNI NIGHT

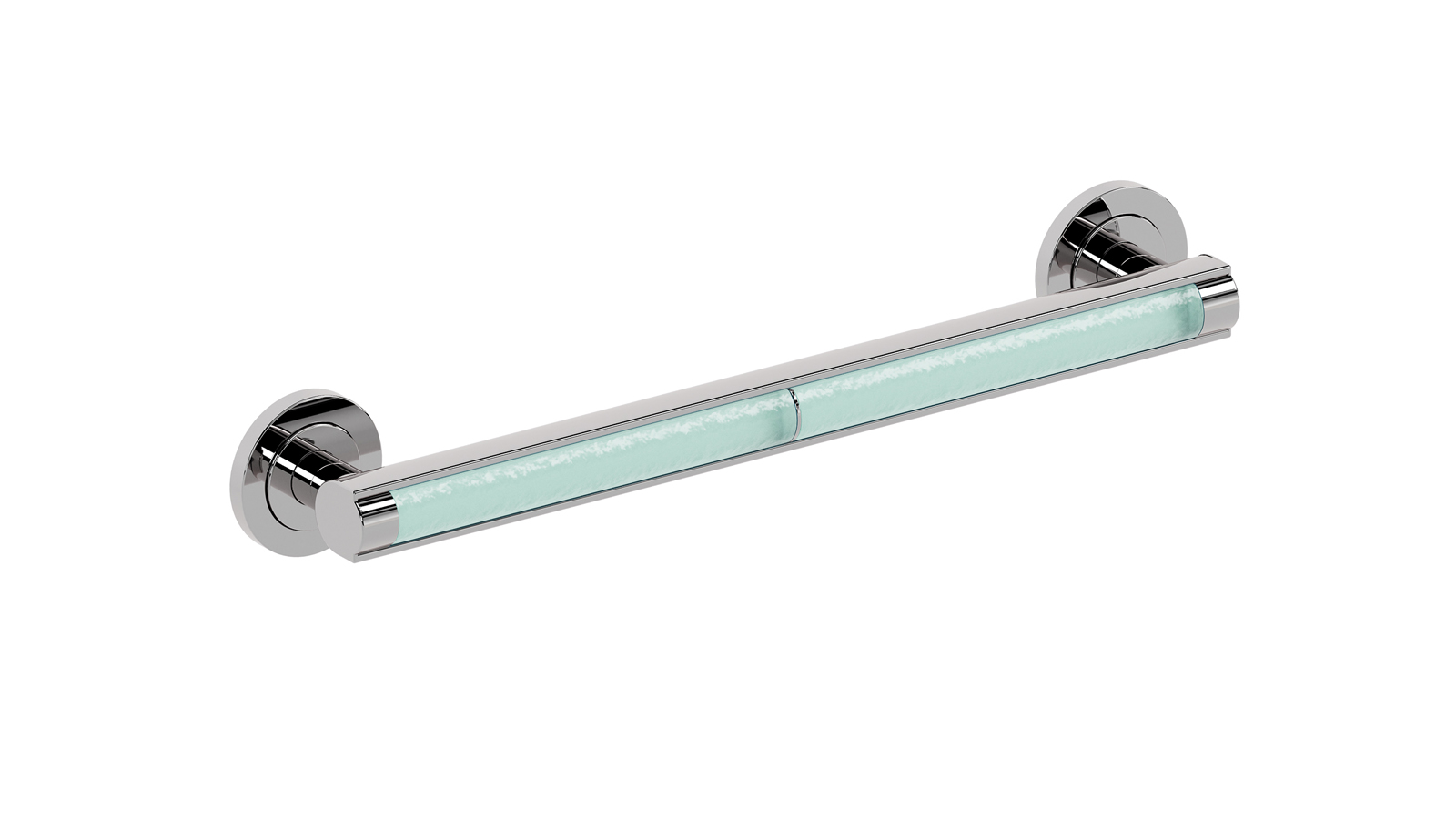

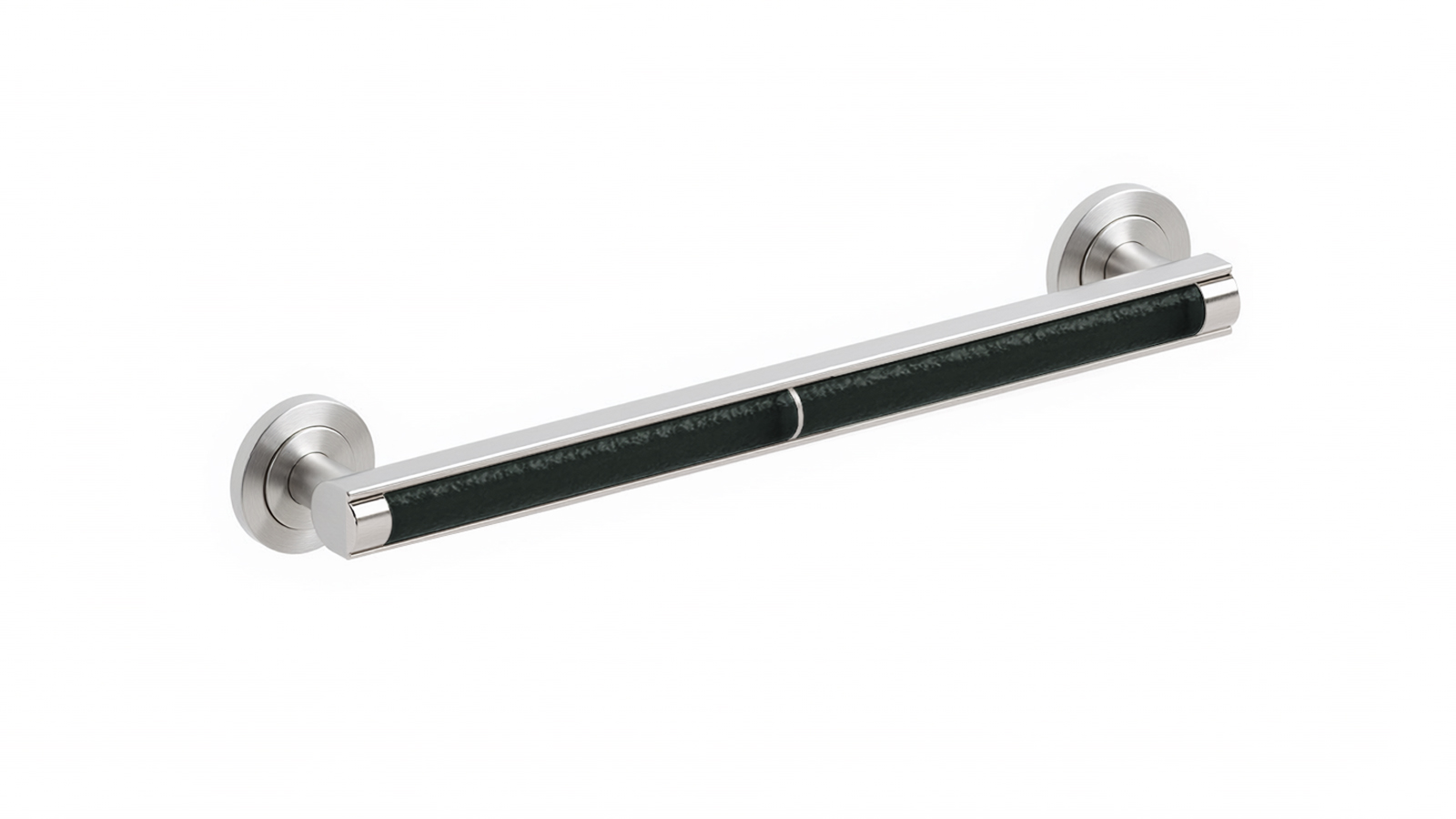

• Center to Center: 18”
• Overall Length: 21”
• Insert Length: 18”
• Bar Diameter: 1.5”
• Projection from Wall: 3.06”
• Wall Mount Diameter: 2.98”
• Material Spec: 304 SS, 20 Gauge
• Insert Material: Glass
• Load bearing up to 300 lbs
• ADA Compliant

POLISHED CHROME
05ST18PC-GLFR FROST
05ST18PC-GLSE SEA
05ST18PC-GLSK SKY
05ST18PC-GLSA SAND
05ST18PC-GLTW TWILIGHT
05ST18PC-GLNI NIGHT

BRUSHED NICKEL
05ST18BN-GLFR FROST
05ST18BN-GLSE SEA
05ST18BN-GLSK SKY
05ST18BN-GLSA SAND
05ST18BN-GLTW TWILIGHT
05ST18BN-GLNI NIGHT

MATTE BLACK
05ST18MB-GLFR FROST
05ST18MB-GLSE SEA
05ST18MB-GLSK SKY
05ST18MB-GLSA SAND
05ST18MB-GLTW TWILIGHT
05ST18MB-GLNI NIGHT

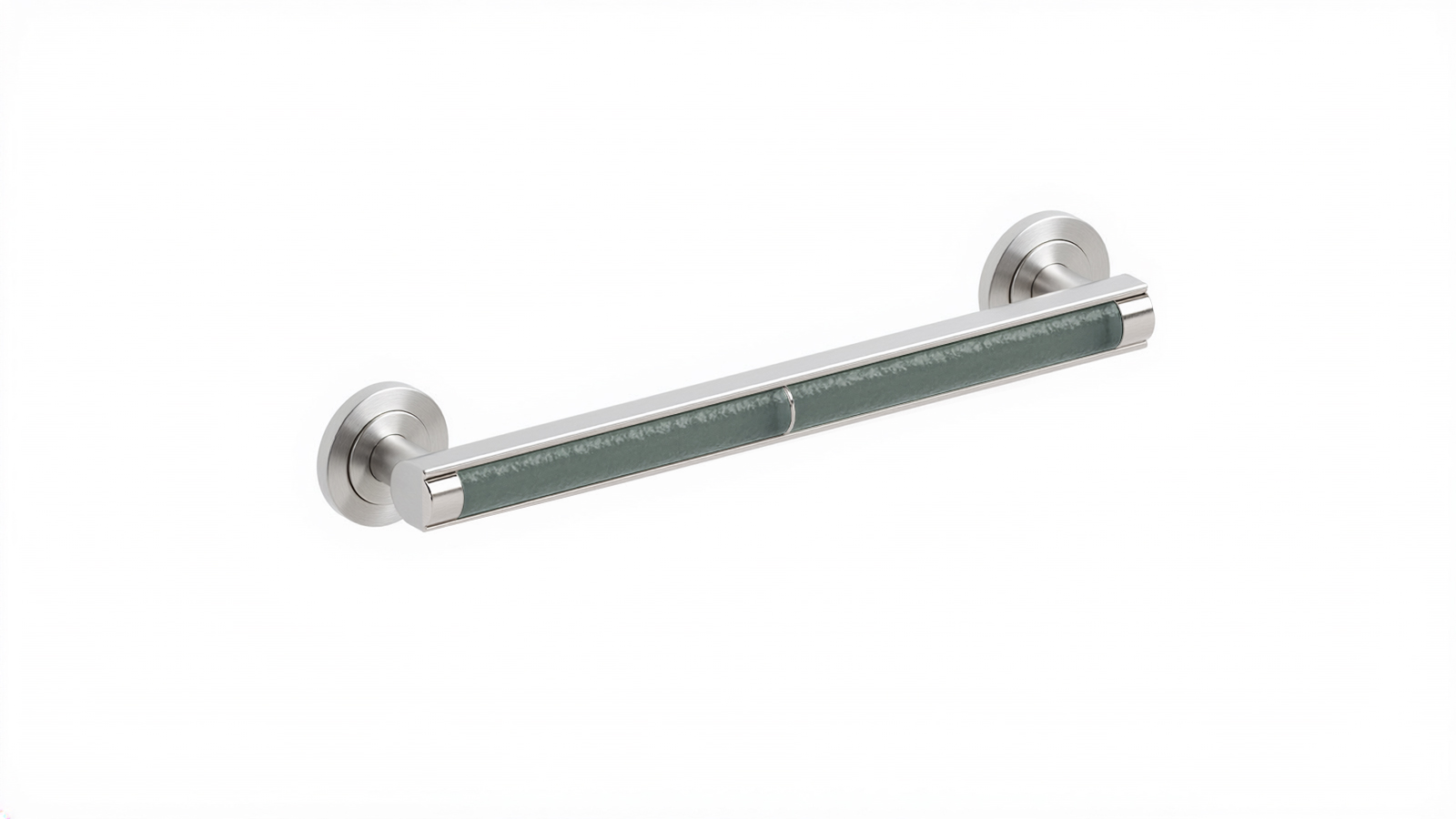

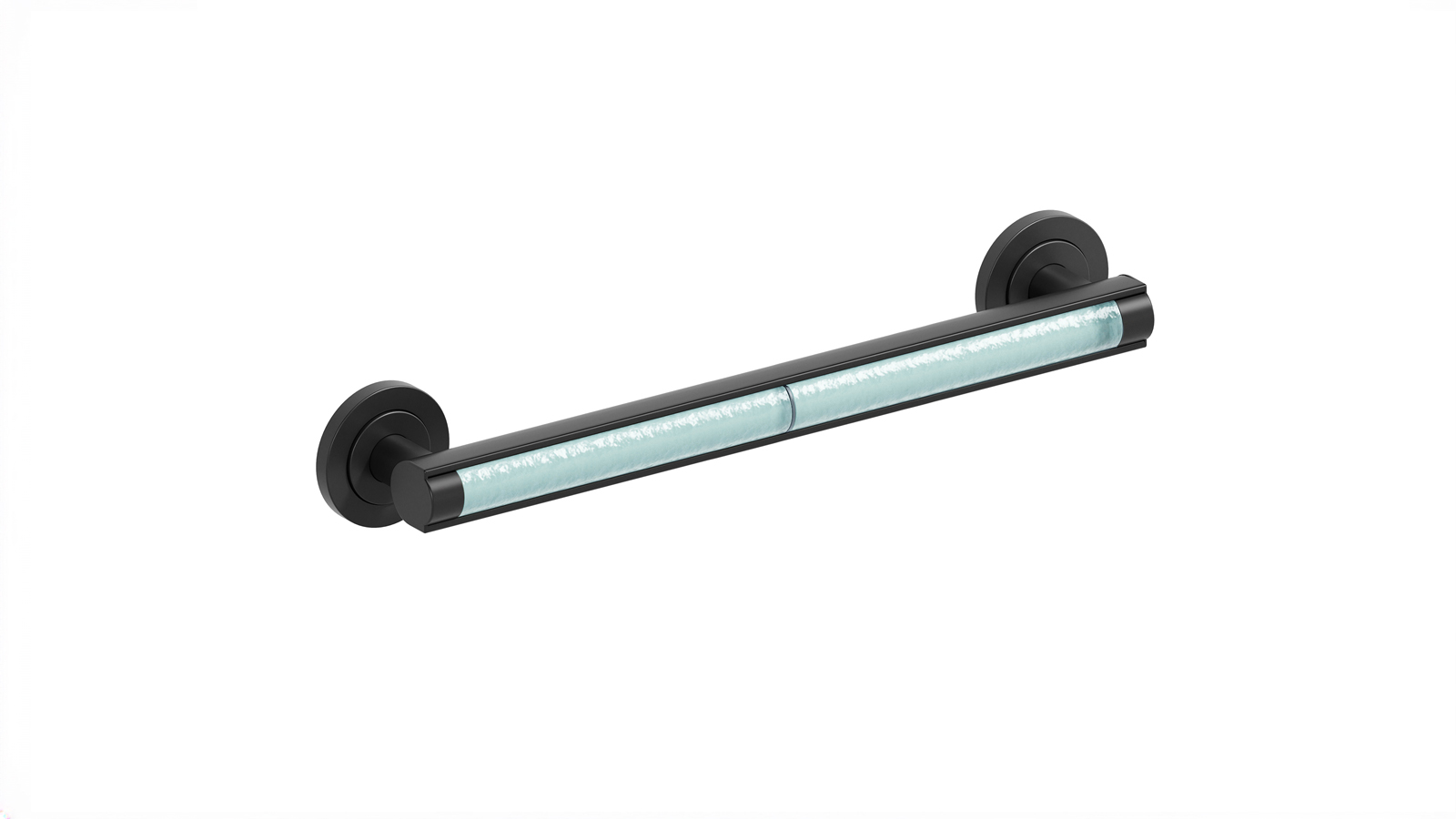

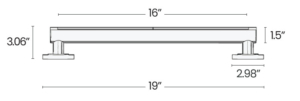

• Center to Center: 16”
• Overall Length: 19”
• Insert Length: 16”
• Bar Diameter: 1.5”
• Projection from Wall: 3.06”
• Wall Mount Diameter: 2.98”
• Material Spec: 304 SS, 20 Gauge
• Insert Material: Glass
• Load bearing up to 300 lbs
• ADA Compliant

POLISHED CHROME
05ST16PC-GLFR FROST
05ST16PC-GLSE SEA
05ST16PC-GLSK SKY
05ST16PC-GLSA SAND
05ST16PC-GLTW TWILIGHT
05ST16PC-GLNI NIGHT

BRUSHED NICKEL
05ST16BN-GLFR FROST
05ST16BN-GLSE SEA
05ST16BN-GLSK SKY
05ST16BN-GLSA SAND
05ST16BN-GLTW TWILIGHT
05ST16BN-GLNI NIGHT

MATTE BLACK
05ST16MB-GLFR FROST
05ST16MB-GLSE SEA
05ST16MB-GLSK SKY
05ST16MB-GLSA SAND
05ST16MB-GLTW TWILIGHT
05ST16MB-GLNI NIGHT

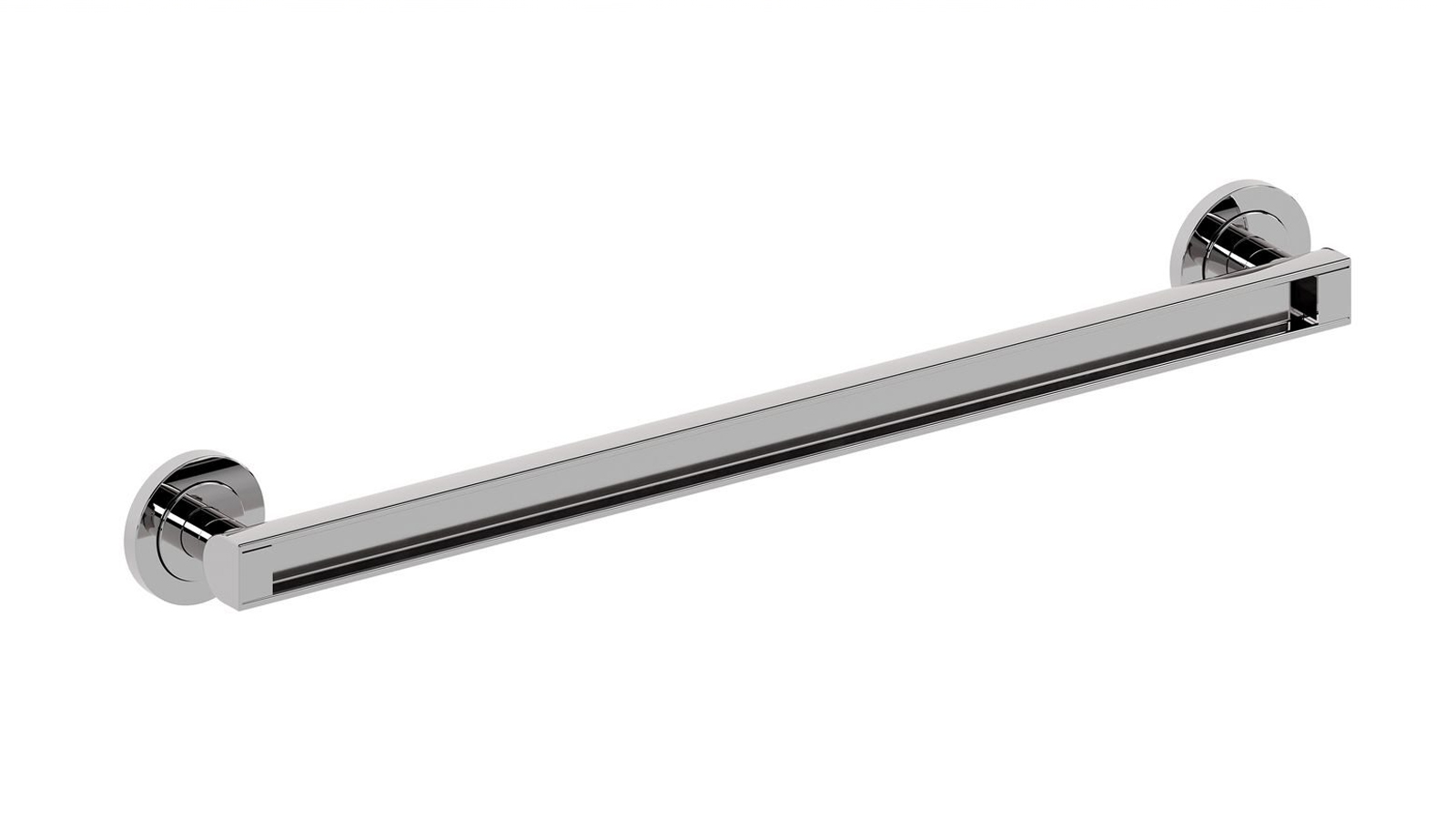

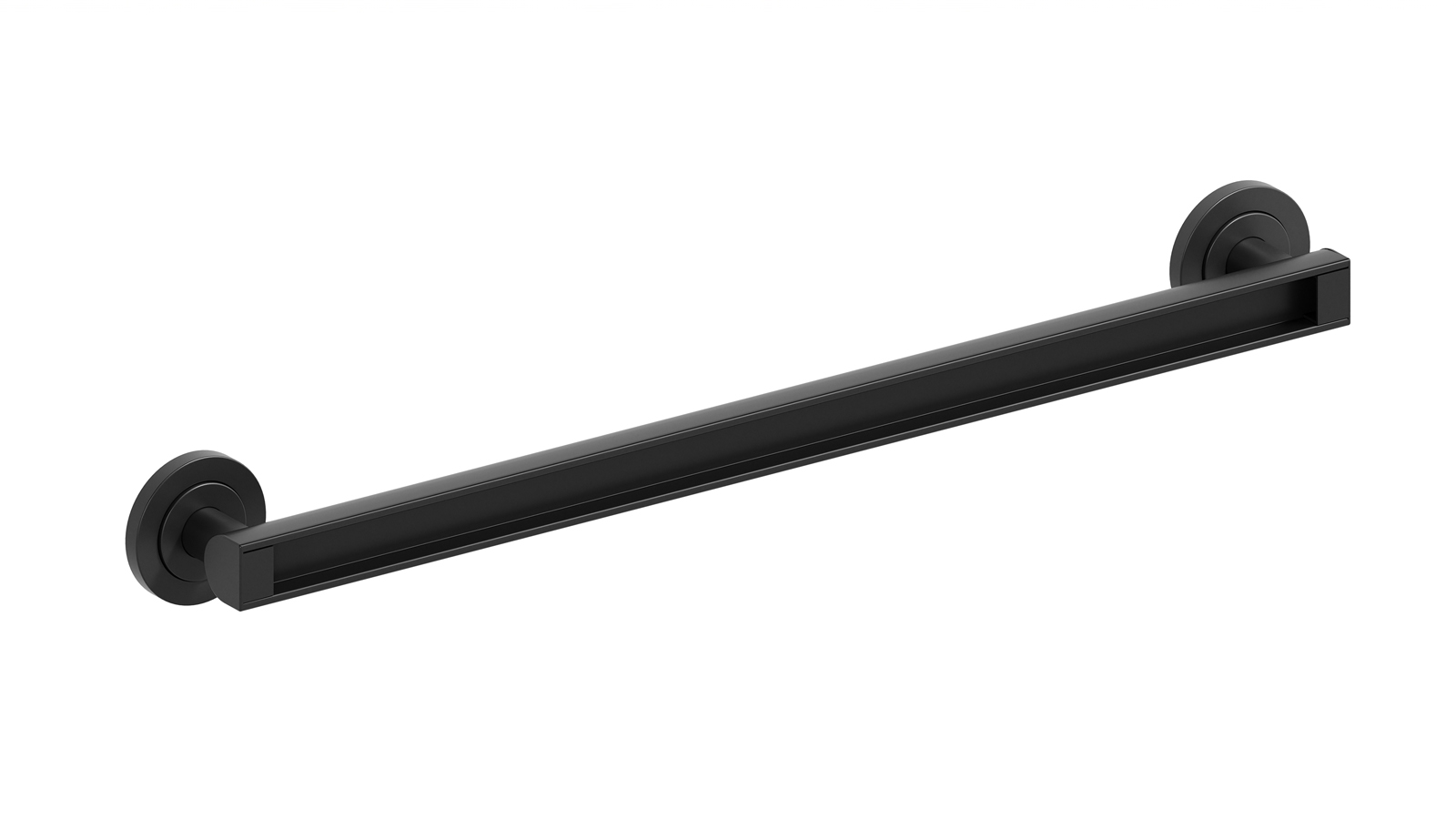

• Center to Center: 24”
• Overall Length: 27”
• Cavity Length: 24”
• Cavity Depth: 0.5”
• Cavity accepts max 0.375” material
• Bar Diameter: 1.25”
• Projection from Wall: 2.81”
• Wall Mount Diameter: 2.98”
• Material Spec: 304 SS, 20 Gauge
• Load bearing up to 300 lbs
• ADA Compliant

POLISHED CHROME
ITEM # 05ST24PC

BRUSHED NICKEL
ITEM # 05ST24BN

MATTE BLACK
ITEM # 05ST24MB

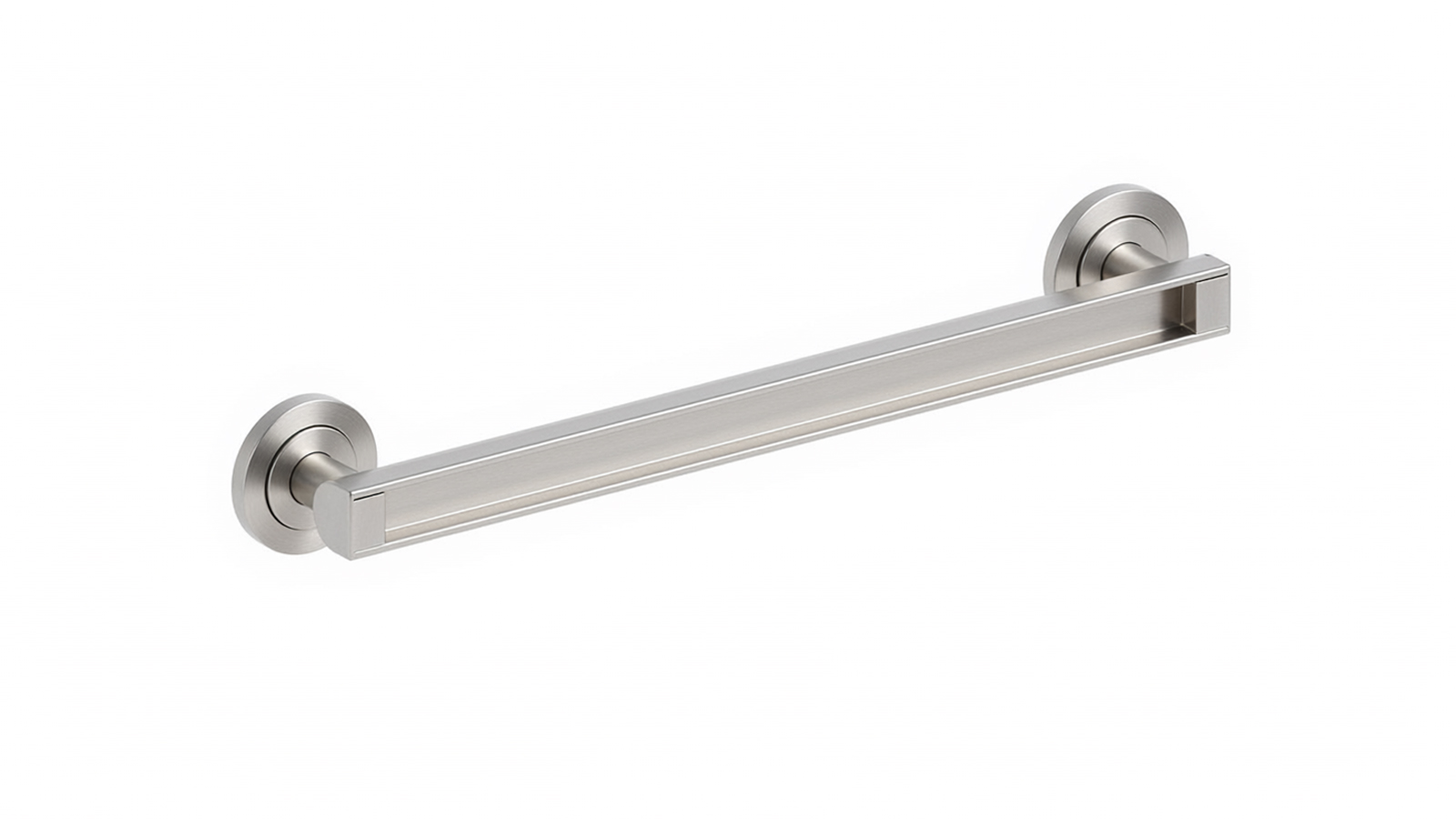

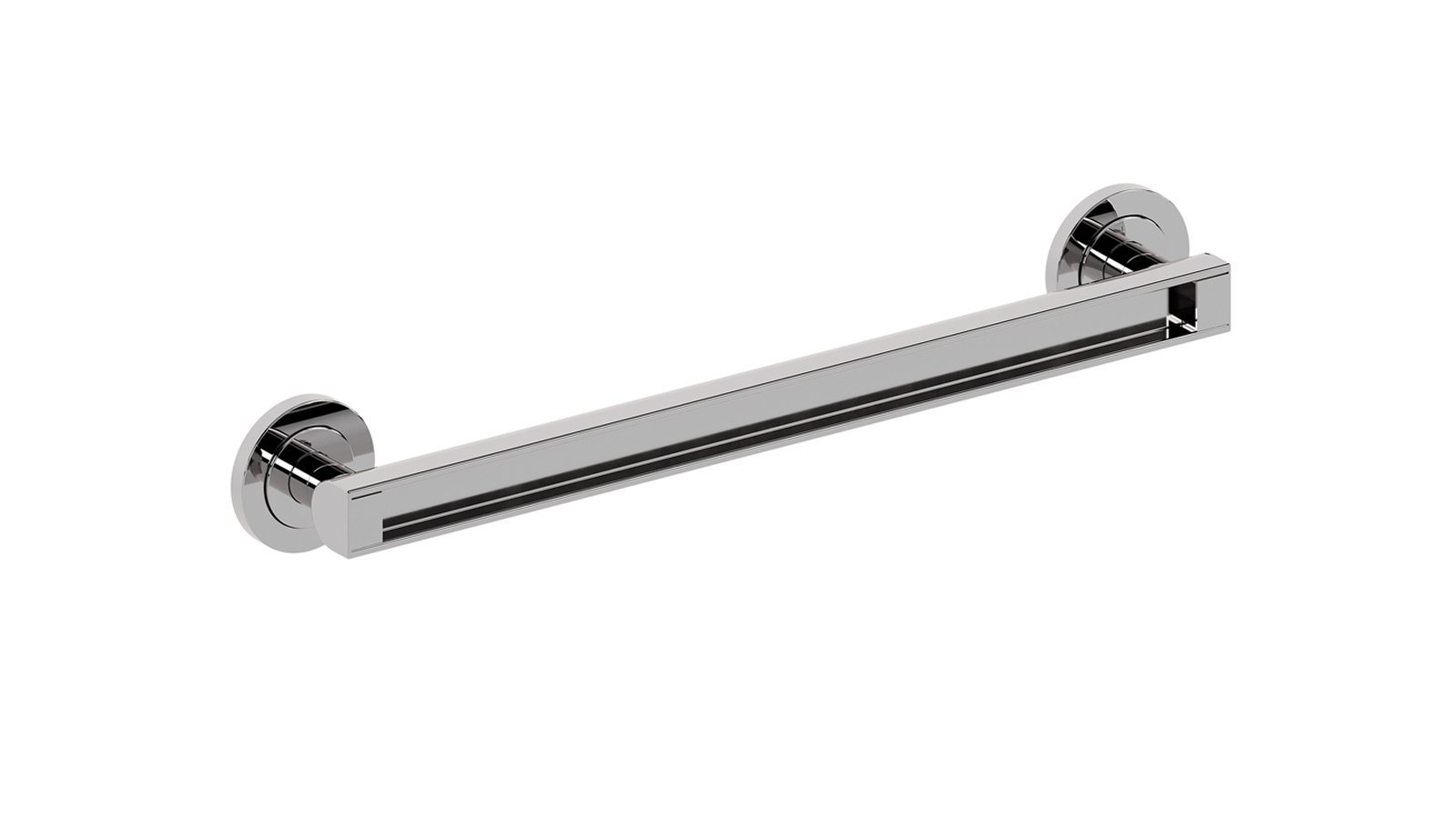

• Center to Center: 18”
• Overall Length: 21”
• Cavity Length: 18”
• Cavity Depth: 0.5”
• Cavity accepts max 0.375” material
• Bar Diameter: 1.25”
• Projection from Wall: 2.81”
• Wall Mount Diameter: 2.98”
• Material Spec: 304 SS, 20 Gauge
• Load bearing up to 300 lbs
• ADA Compliant

POLISHED CHROME
ITEM # 05ST18PC

BRUSHED NICKEL
ITEM # 05ST18BN

MATTE BLACK
ITEM # 05ST18MB

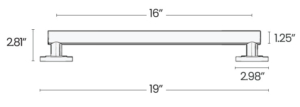

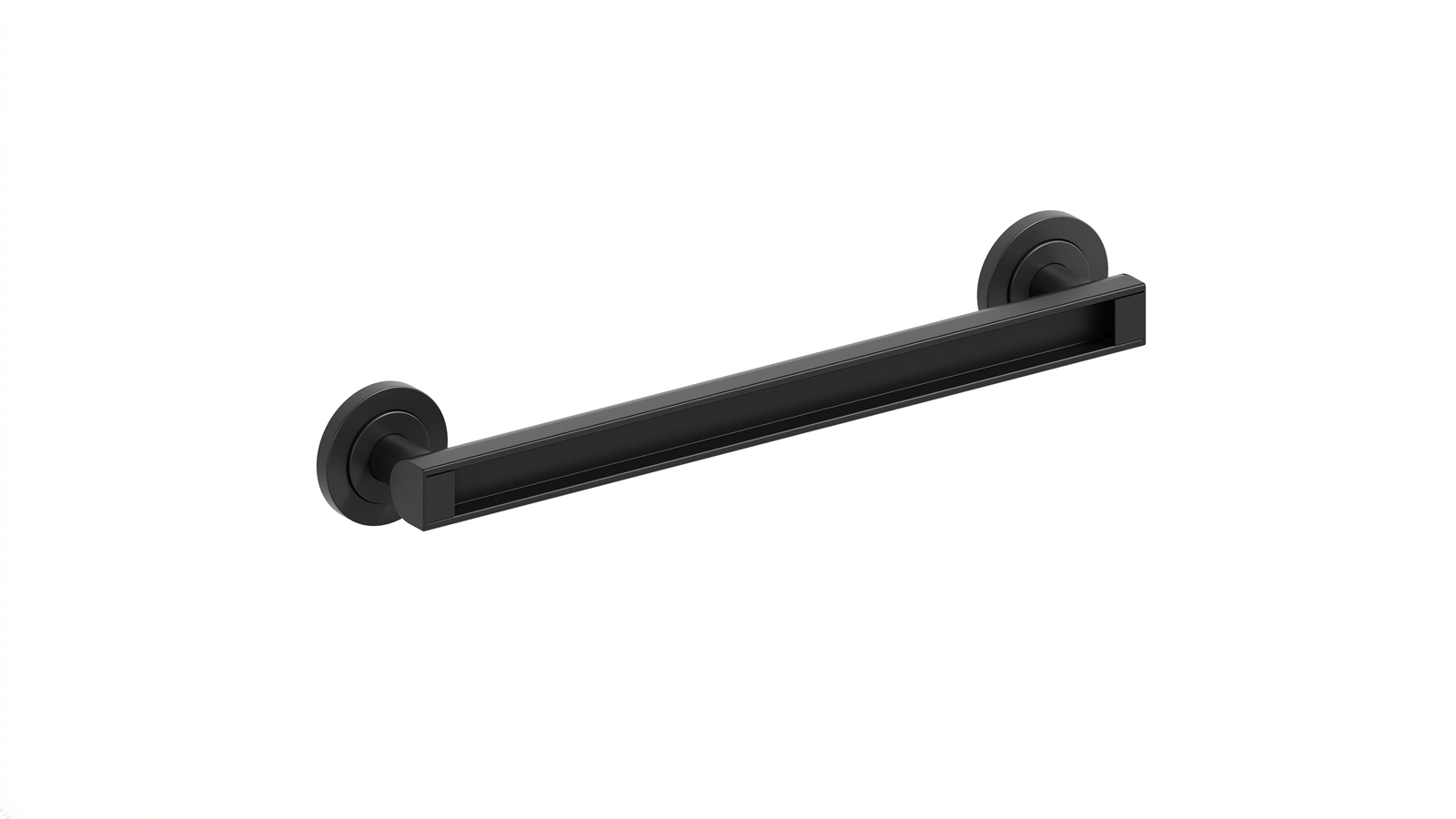

• Center to Center: 16”
• Overall Length: 19”
• Cavity Length: 16”
• Cavity Depth: 0.5”
• Cavity accepts max 0.375” material
• Bar Diameter: 1.25”
• Projection from Wall: 2.81”
• Wall Mount Diameter: 2.98”
• Material Spec: 304 SS, 20 Gauge
• Load bearing up to 300 lbs
• ADA Compliant

POLISHED CHROME
ITEM # 05ST16PC

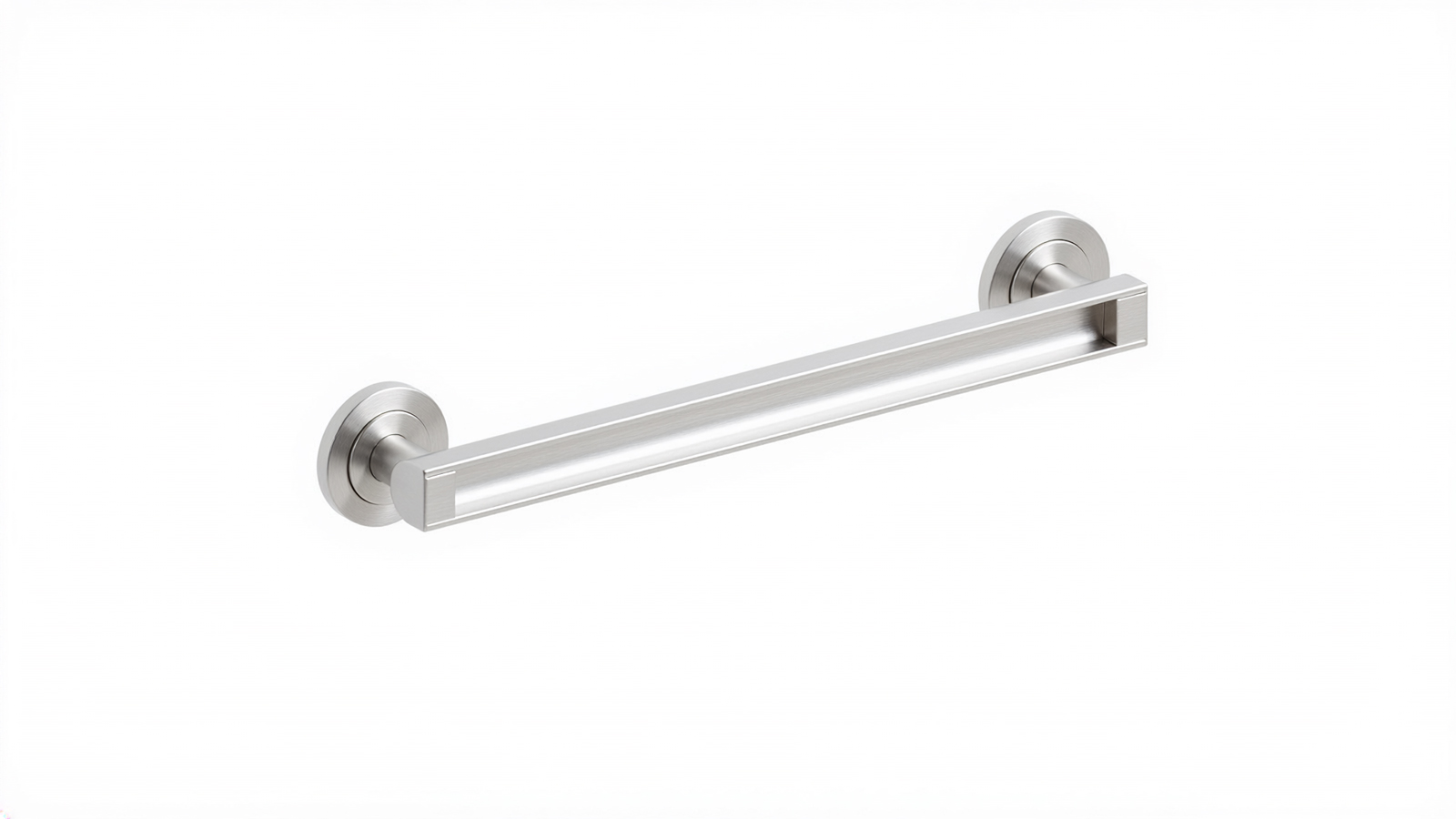

BRUSHED NICKEL
ITEM # 05ST16BN

MATTE BLACK
ITEM # 05ST16MB
